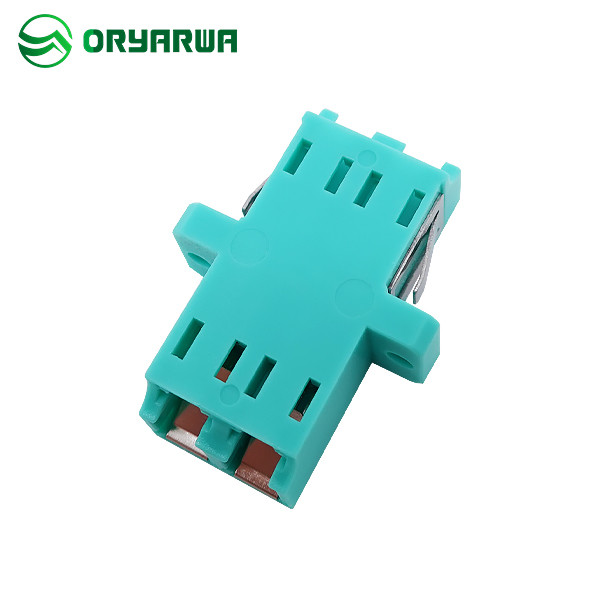

Flange LC Duplex Fiber Optic Adapter With Inner Shutter Eye Protection

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94-V0 Model Number: Aqua LC Duplex Fiber Optic Coupler with Shutter

Detail Information

Product Name: Aqua LC Duplex Fiber Optic Coupler With Shutter Color: Aqua
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 1-2.5N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-20-2012 / IEC613000 Certification: ISO9001
High Light:

Flange Fiber Optic Adapter

,

Flange Shutter Fiber Optic Adapter

,

Flange LC optic adapter

Product Description

Flange LC Duplex Fiber Optic Adapter With Inner Shutter Eye Protection



Flange LC Duplex Optical Fiber Coupler with Inner Shutter Eye Protection



Detailed Product Description:

Product Name

Aqua LC Duplex Fiber Optic Coupler with Shutter

Color

Aqua

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20-2012 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Zirconia Sleeve ,Compact design
> Low insertional loss and back reflection loss
> Strict curing time and temperature control
> Strict testing standards and methods for quality
> Environment protection (ROHS Compliance)
> The fiber optical adapter can be customized according to customers' specific requirements

  (Customized Connector/Length/package...)
> 100% NEW raw material and well quality control ensure the best life time.



Fiber Optic Adapter Application:

FTTx (FTTA, FTTB, FTTC, FTTO, FTTH,..)

CATV
Telecommunication networks
Test equipment
Metro
Local Area Networks(LANs)
Data processing networks



Flange LC Duplex Fiber Optic Adapter With Inner Shutter Eye Protection 0Flange LC Duplex Fiber Optic Adapter With Inner Shutter Eye Protection 1Flange LC Duplex Fiber Optic Adapter With Inner Shutter Eye Protection 2

Flange LC Duplex Fiber Optic Adapter With Inner Shutter Eye Protection 3



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.





Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-028 LC Adaptor Duplex Flangeless One pie...

OYH-JS-ZP-027 LC Adaptor Duplex with Flange One pi...
