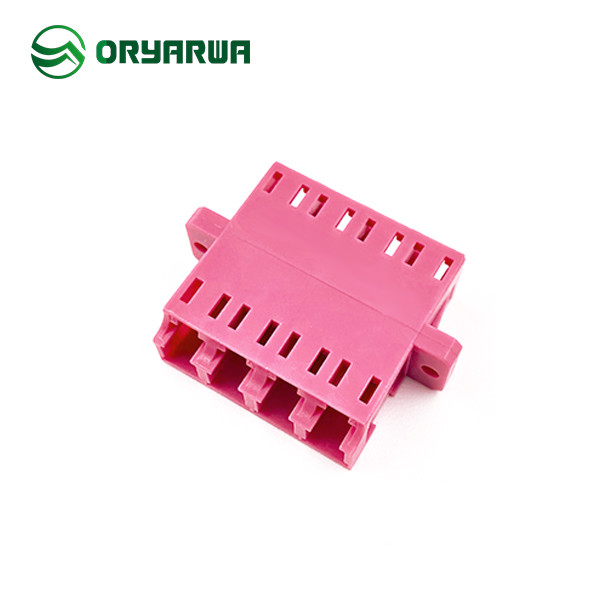

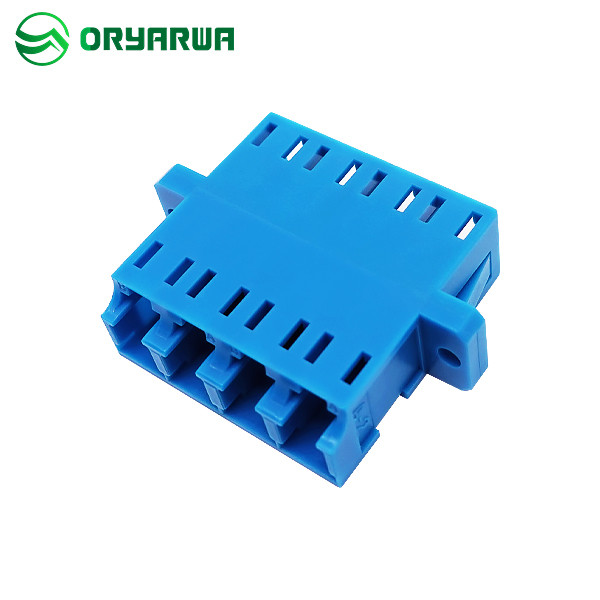

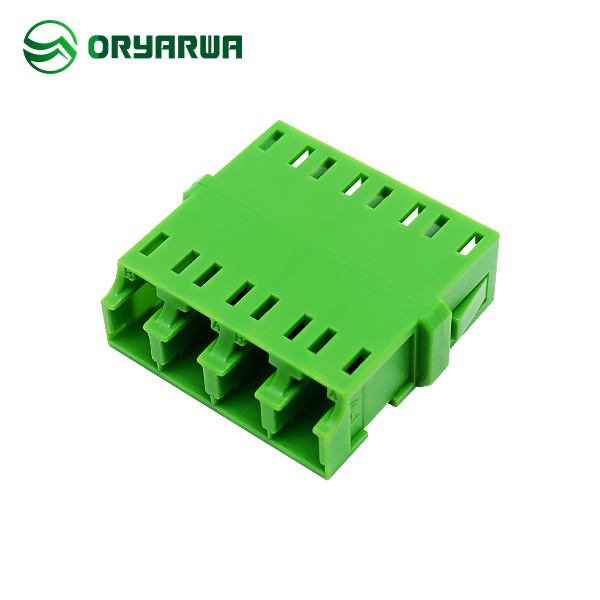

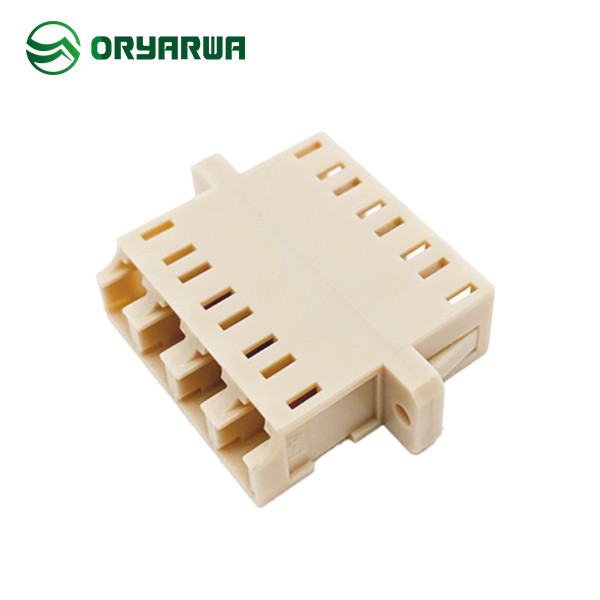

Dissymmetric Quad LC Fiber Optic Adapter Multimode With Flange

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: LC Quad Welded Fiber Optic Adapter

Detail Information

Certification: ISO9001 Product Name: LC Quad Welded Fiber Optic Adapter
Color: Aqua/Green/Blue/Beige/OM4 Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 1-2.5N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-20-2012 / IEC613000
High Light:

Quad LC Fiber Optic Adapter

,

Dissymmetric LC Fiber Optic Adapter

,

Dissymmetric multimode fiber adapter

Product Description

Dissymmetric Quad LC Fiber Optic Adapter Multimode With Flange



Dissymmetric Aqua LC Quad Optical Fibre Adaptor with Flange



Detailed Product Description:

Product Name

Aqua LC Quad Welded Fiber Optic Adapter

Color

Aqua/Green/Blue/Beige/OM4

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20-2012 / IEC61300



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Low insertion loss and back reflection loss

Ferrule end surface pre-domed

Precision anti-rotation key and corrosion resistant body

UL-rated plastic housing

Telcordia style boots

Free-floating ceramic ferrule

Zirconia sleeves or Phosphor bronze sleeves

D-shaped easily installs into panel mount

RoHS compliant



Fiber Optic Adapter Application:

> Telecommunication Networks.

Communication System.

Test Equipment.

Fiber CATV.

FTTH.





Dissymmetric Quad LC Fiber Optic Adapter Multimode With Flange 0

Dissymmetric Quad LC Fiber Optic Adapter Multimode With Flange 1

Dissymmetric Quad LC Fiber Optic Adapter Multimode With Flange 2



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-033 LC Adaptor Quad Flangless Asymmetric...

OYH-JS-ZP-030 LC Adaptor Quad with Flange Asymmetr...
