2.0mm UPC Single Mode Fiber SC Connector GR326 40MM NET Boot Meet

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 200sets/Nylon bag ; Carton: 47*24*34CM Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-V0 Model Number: SC Fiber Optic Connector 2.0MM Nets Boot

Detail Information

Product Name: SC Fiber Optic Connector 2.0MM Multi-Nets Boot 85/85 Test: 2000H
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Cable OD: 2.0MM Mode Type: Singlemode, Multimode
Boot Type: 2.0MM Long Multi-Nests Boot 40MM Boot Color: Green/Blue/White/Red/Yellow
Housing Color: Green/Blue/Beige/Aqua Housing Type: General
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meet Standards: IEC61754-4 / YD/T 1272.3 / GR326 Certification: ISO9001
High Light:

2.0mm Single Mode Fiber SC Connector

,

GR326 Single Mode Fiber SC Connector

,

GR326 sc upc fiber connector

Product Description

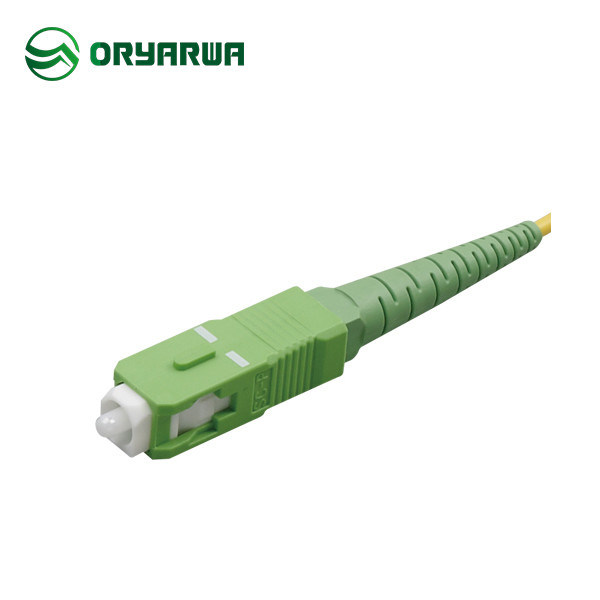

2.0mm UPC Single Mode Fiber Sc Connector GR326 40MM NET Boot Meet



SC Fiber Optic Single Mode Connector 2.0MM UPC Blue with 40MM NET BOOT Meet GR326 Low Insertion Loss Value



Detailed Product Description:

Product Name

SC Fiber Optic Connector 2.0MM Multi-Nets Boot Color

Green/Blue/Beige/Aqua

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

StandardsV

IEC61754-4 / YD/T 1272.3 / GR326



Environmental and Mechanism:

Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:

> Low insertion loss and back reflection loss
> High precision alignment
> Nickel plated brass body
> Use in Single-mode or Multimode applications
> Choice of housing material and sleeve material
> ISO9001, ROHS & REACH compliance



Application:

> For end-to-end fiber cable connectivity
> Active device termination
> Telecommunication networks
> Metro networks
> Local Area Networks (LANs)
> Data processing network
> Wide Area Networks (WANs)
> Test equipment
> Premise installations



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Drawing:

OYH-JS-ZP-165 SC 2.0mm Square Boot GR326.pdf



Reports:

HA0121030746CHEM_PBT_REACH(HATEK).pdf

HA0121030732CHEM_PBT_ROHS(HATEK).pdf
