Outer Shutter Simplex SC To SC Fiber Coupler Flangeless For Telecom Network

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-V0 Model Number: SC Simplex Welded Fiber Optic Adapter with Shutter

Detail Information

Product Name: SC Simplex Welded Fiber Optic Adapter With Shutter Color: Green
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 2-5.9N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-4-2013 / IEC613000 Certification: ISO9001
High Light:

Simplex SC To SC Fiber Coupler

,

Flangeless SC To SC Fiber Coupler

,

Flangeless sc to sc coupler

Product Description

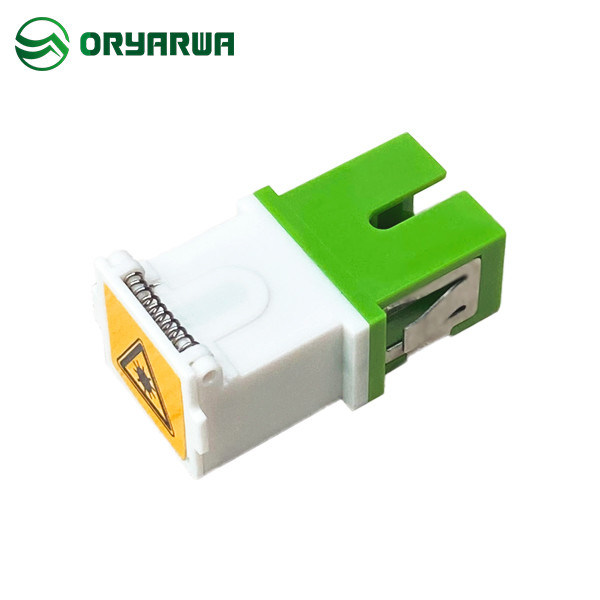

Outer Shutter Simplex SC To SC Fiber Coupler Flangeless For Telecom Network



SC To SC Simplex Welding Outer Shutter Fiber Optic Adapter Flangeless Telecom Network Cabling System



Hight Light: Eye Protection, good performerce laser proof with innner shutter



Detailed Product Description:

Product Name

SC Simplex Welded Fiber Optic Adapter with Shutterr

Color

Green

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~ + 80℃

Standards

IEC61754-4-2013 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Eye Protection

> Strict testing standards and methods for quality

> Simple and easy method to quickly interconnect

> Precision connection with sleeve

> Low insertion loss, High Return loss

> Zirconia Sleeve ,Compact design

> Complies with IEC 61754-4, Flammability UL94 V-0 standard



Fiber Optic Adapter Application:

> Fiber Optic Telecommunications
> LAN (Local Area Network)
> FTTH (Fiber To The Home)
> CATV&CCTV System
> High speed transmission systems
> Fiber optic sensing
> Industtial, Mechanical and Military



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

Outer Shutter Simplex SC To SC Fiber Coupler Flangeless For Telecom Network 0Outer Shutter Simplex SC To SC Fiber Coupler Flangeless For Telecom Network 1



Outer Shutter Simplex SC To SC Fiber Coupler Flangeless For Telecom Network 2





Outer Shutter Simplex SC To SC Fiber Coupler Flangeless For Telecom Network 3



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-010 SC Adaptor outer shutter Flangeless....

OYH-JS-ZP-009 SC Adaptor outer shutter with flange...
