Product Details:
|
|
| Place of Origin: | Zhejiang |
|---|---|
| Brand Name: | Oryarwa |
| Model Number: | SC Fiber Optic Connector 2.0MM Round Boot |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1000 |
| Price: | Negotiate |
| Packaging Details: | 200sets/Nylon bag ; Carton: 47*24*34CM |
| Delivery Time: | 3-14 Days |
| Payment Terms: | T/T |
| Supply Ability: | 6000000 PCS/Month |
|
Detail Information |
|||
| Certification: | ISO9001 | Product Name: | SC Fiber Optic Connector 2.0MM Round Boot |
|---|---|---|---|
| 85/85 Test: | 2000H | Insertion Loss: | ≤0.2dB |
| Durability: | ≤0.2dB( 500 Times) | Cable OD: | 2.0MM |
| Mode Type: | Singlemode, Multimode | Boot Type: | 2.0MM Round Boot 40MM |
| Boot Color: | Green/Blue | Housing Color: | Green/Blue/Beige/Aqua |
| Housing Type: | General | Operating Temp.: | -40℃～+80℃ |
| Storage Temp.: | -40℃～+80℃ | Meet Standards: | IEC61754-4 / YD/T 1272.3 |
| High Light: | 40mm Single Mode Fiber Connector,ODM Single Mode Fiber Connector,ODM sc single mode connector |
||
Product Description

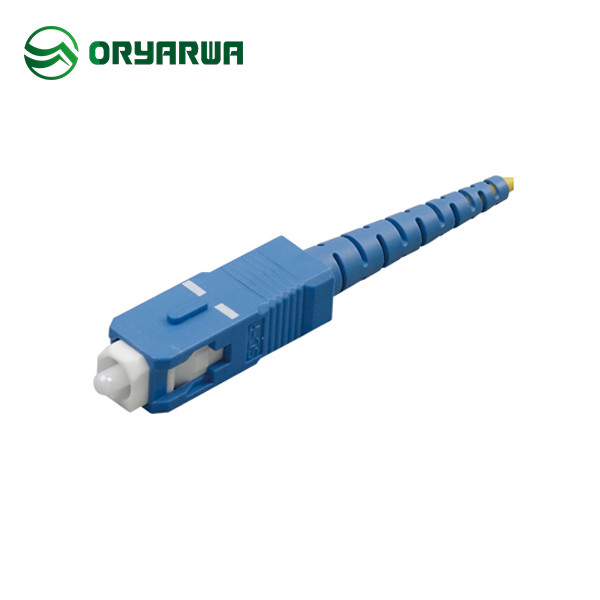

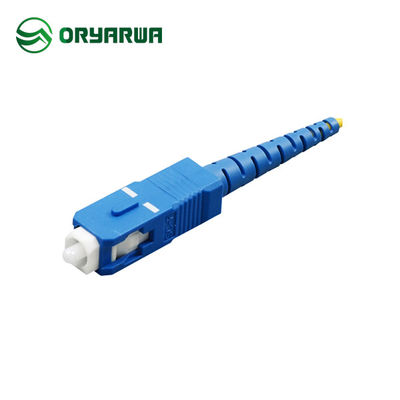

Round Boot 40mm SC Single Mode Fiber Connector 2.0mm UPC ODM OEM
SC Fiber Optic Connector 2.0MM Singlemode UPC Round Boot 40mm for Telecom Network
Detailed Product Description:
|
Product Name |
SC Fiber Optic Connector 2.0MM Round Boot | Color |
Green/Blue/Beige/Aqua |
|---|---|---|---|
|
Mode Type |
Singlemode, Multimode |
Insertion Loss |
≤0.2dB |
|
Sleeve Pull Force |
2-5.9N |
Durability |
≤0.2dB( 500 Times) |
|
Operating Temp. |
-40℃～+80℃ |
Standards |
IEC61754-4 / YD/T 1272.3 |
Environmental and Mechanism:
| Properties | Test condition | Conformance | Test result |
|---|---|---|---|
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 500 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
| Temperature Cycling | 40ºC to +85ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%RH, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Features:
> Single mode, Multi-mode Versions
> Low Insertion Loss and High Return Loss
> High Reliability and Stability
> Ceramic sleeve, PC housing
> Accurate Mechanical Dimensions
Application:
> FTTH and FTTx
> Telecommunication Networks
> CATV Networks
> Data communication Networks
> Testing Instruments
> Fiber optic sensing
> High speed transmission systems
> Industrial, Mechanical and Military
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
Drawing:
OYH-JS-ZP-101 SC 2.0mm Round Boot.pdf
OYH-JS-ZP-100 SC 2.0mm Round Boot Duplex.pdf
