IEC LC Fiber Optic Adapter With Shutter

Product Details:
Place of Origin: Zhejiang
Brand Name: Oryarwa
Model Number: Green LC Quad One Piece Flange Fiber Optic Adapter with Shutter
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiate
Packaging Details: 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN
Delivery Time: 3-14 Days
Payment Terms: T/T
Supply Ability: 5000000 PCS/Month

Detail Information

Certification: ISO9001 Product Name: Green LC Quad One Piece Flange Fiber Optic Adapter With Shutter
Color: Green Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 1-2.5N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-20-2012 / IEC613000
High Light:

IEC Fiber Optic Adapter

,

IEC LC Fiber Optic Adapter

,

IEC Fiber Optical Adapter

Product Description

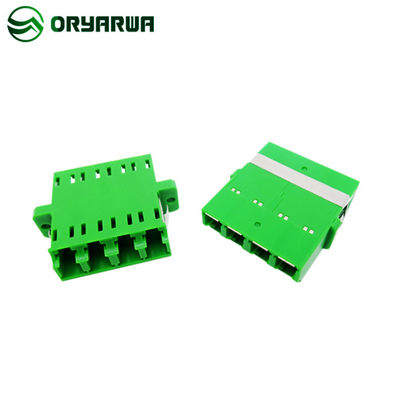

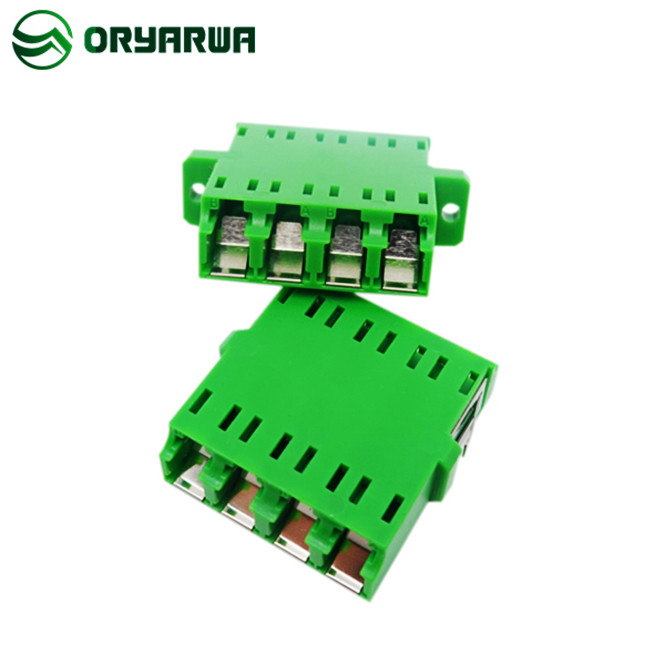

 IEC LC Fiber Optic Adapter with Shutter



SM MM Green LC 4 Ways Fiber Optic Adapter with Shutter Single Mode IEC Standards Customized



Detailed Product Description:

Product Name

Green LC Quad One Piece Flange Fiber Optic Adapter with Shutter

Color

Green

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20-2012 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

>Eye Protection
>Auto shutter protects against dust and contaminants
>100% tested on optical performance (Insertion Loss & Return Loss).
>Precision connection with zirconia sleeve
>Low insertion loss, High Return loss
>High temperature stability
>All parts compliant with IEC / ROHS / REACH



Fiber Optic Adapter Application:

>CATV
>Active device termination
>Telecommunication networks
>Metro
>Local Area Networks (LANs)
>Data processing networks
>Test equipment
>Premise installation
>Wide Area Networks(WANs)



IEC LC Fiber Optic Adapter With Shutter 0IEC LC Fiber Optic Adapter With Shutter 1IEC LC Fiber Optic Adapter With Shutter 2



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Reports

LC Adapter -PC Material-RoHS(HATEK).pdf

LC Adapter_PC Material_REACH(HATEK).pdf



Darwing

OYH-JS-ZP-108 LC Adaptor Quad Flangeless One piece...

OYH-JS-ZP-107 LC Adaptor Quad with Flange One pie...
