Detail Information
Certification:	ISO9001	Product Name:	LC Fiber Optic Polarity Swichable Uniboot Connector
85/85 Test:	2000H	Insertion Loss:	≤0.2dB
Durability:	≤0.2dB( 500 Times)	Mode Type:	Singlemode, Multimode
Cable OD:	2.0 / 3.0MM	Boot Type:	2.0 / 3.0MM Polarity Swichable Uniboot
Boot Color:	White	Housing Type:	General
Housing Color:	Green/Blue/Beige/Aqua/Fushcia	Operating Temp.:	-40℃～+80℃
Storage Temp.:	-40℃～+80℃	Meeting Standards:	IEC61754-20 / YD/T 1272.1
High Light:	Uniboot LC Optical Connector , Uniboot UPC LC Optical Connector , Uniboot upc fiber connector

Product Description

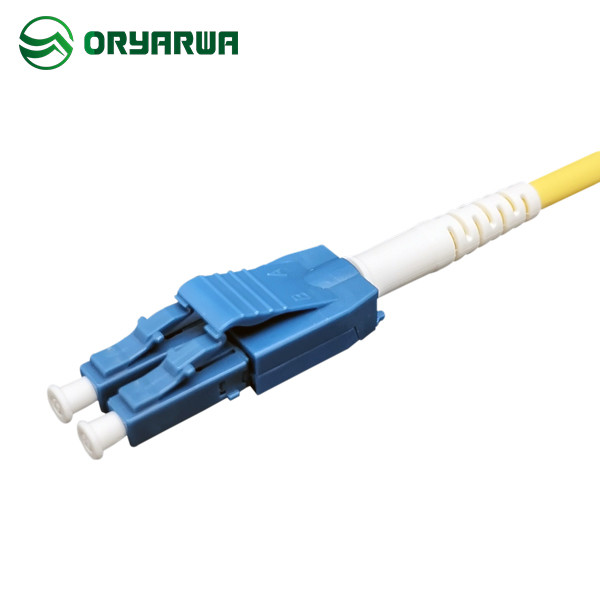

UPC APC AQUA Uniboot LC Optical Connector 2.0mm 3.0mm Single Mode

Polarity Swichable Uniboot LC Fiber Optic Connector UPC/APC/AQUA 2.0mm/3.0mm Meet UL94-V0 Flammability Requirements

Detailed Product Description:

Product Name	LC Fiber Optic Polarity Swichable Uniboot Connector	Color	Green/Blue/Beige/Aqua
Mode Type	Singlemode, Multimode	Insertion Loss	≤0.2dB
Sleeve Pull Force	1-2.5N	Durability	≤0.2dB( 500 Times)
Operating Temp.	-40℃～+80℃	Standards	IEC61754-20 / YD/T 1272.1

Environmental and Mechanism:

Properties	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	500 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-12	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-6	≤0.2dB
Temperature Cycling	40ºC to +85ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%RH, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

Features:

> Meets the Telcordia and IEC 61754 standard

> All materials compliant with RoHS/REACH

> Low insertional loss, High return loss

> Environment protection (ROHS Compliance)

> Strict curing time and temperature control

> 100% NEW raw material and well quality control ensure the best life time.

Application:

> Telecommunication Networks.

> Communication System.

> Test Equipment.

> Fiber CATV.

> Wide Area Networks (WAN)

> Storage Area Networks (SANs)

> FTTH.

FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.

Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.

Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.

Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.

Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.

Tag:

Product Details:
Place of Origin:	Zhejiang
Brand Name:	Oryarwa
Model Number:	LC Fiber Optic Polarity Swichable Uniboot Connector
Payment & Shipping Terms:
Minimum Order Quantity:	1000
Price:	Negotiate
Packaging Details:	200sets/Nylon bag ; Carton: 472434CM
Delivery Time:	3-14 Days
Payment Terms:	T/T
Supply Ability:	6000000 PCS/Month

LC Uniboot LC Fiber Optic Connector Polarity Switch 2.0mm 3.0mm Single Mode

Uniboot LC Optical Connector
