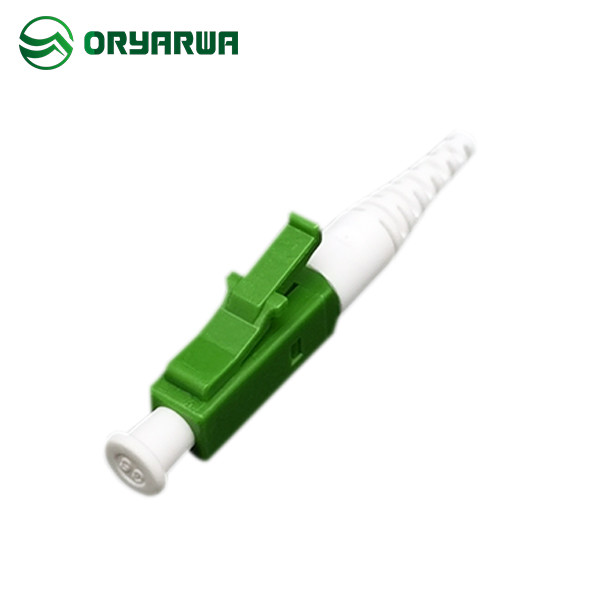

0.9mm Patch Cables UPC LC Fiber Optic Connector Single Mode Simplex

Product Details:
Place of Origin: Zhejiang
Brand Name: Oryarwa
Model Number: LC Fiber Optic Connector 0.9MM Nets Boot
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiate
Packaging Details: 200sets/Nylon bag ; Carton: 47*24*34CM
Delivery Time: 3-14 Days
Payment Terms: T/T
Supply Ability: 6000000 PCS/Month

Detail Information

Certification: ISO9001 Product Name: LC Fiber Optic Connector 0.9MM Nets Boot
85/85 Test: 2000H Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Mode Type: Singlemode, Multimode
Cable OD: 0.9MM Boot Type: 0.9MM Nets Boot
Boot Color: White Housing Type: General
Housing Color: Green Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Green/Blue/Beige/Aqua/Fushcia: IEC61754-20 / YD/T 1272.1
High Light:

0.9mm LC Fiber Optic Connector

,

CATV LC Fiber Optic Connector

,

CATV lc fiber connector

Product Description

0.9mm Patch Cables UPC LC Fiber Optic Connector Single Mode Simplex



LC/UPC Fiber Optic Connector 0.9 MM Nets Boot Single Mode Simplex For 0.9mm Fiber Patch Cables



Detailed Product Description:

Product Name

LC Fiber Optic Connector 0.9MM Nets Boot Color

Green

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20 / YD/T 1272.1



Environmental and Mechanism:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Single mode and Multimode
> Zirconia sleeves
> Compliant with IEC61754-20 / YD/T 1272.1
> All parts compliant with ROHS / REACH
> Low insertion loss and back reflection loss
> Boots in a variety of colors
> 0.9/2.0/3.0mm Boot



Application:

> CATV
> Active device termination
> Telecommunication networks
> Metro
> Local Area Networks (LANs)
> Data processing networks
>Test equipment
> Premise installation
> Wide Area Networks(WANs)



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Drawing:

OYH-JS-ZP-071 LC 0.9mm Net Boot.pdf



Reports:

HA0121030751CHEM_PPSU_REACH(HATEK).pdf

HA0121030737CHEM_PPSU_ROHS(HATEK).pdf
