Flange Ceramic Sleeve LC Fiber Optic Adapter One Piece Type For CCTV System

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94 -V0 Model Number: OM4 LC Quad One Piece Type Fiber Optic Adapter

Detail Information

Product Name: OM4 LC Quad One Piece Type Fiber Optic Adapter Color: Violet / OM4 / Fushcia
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 1-2.5N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-20-2012 / IEC613000 Certification: ISO9001
High Light:

Ceramic Sleeve LC Fiber Optic Adapter

,

UL LC Fiber Optic Adapter

,

Ceramic Sleeve lc lc adapter

Product Description

Flange Ceramic Sleeve LC Fiber Optic Adapter One Piece Type For CCTV System



One Piece Type LC Quad Fiber Optic Coupler with Flange



Detailed Product Description:

Product Name

OM4 LC Quad One Piece Type Fiber Optic Adapter

Color

OM4 / Fushcia / Violet

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20-2012 / IEC61300



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Simple and easy method to quickly interconnect
> Reliable and superior optical performance
> Customer designed specification

> With high-quality porcelain bushing
> Compact packing

> All materials compliant with RoHS/REACH



Fiber Optic Adapter Application:

> High speed transmission systems
Fiber optic sensing
Industrial, Mechanical and Military
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

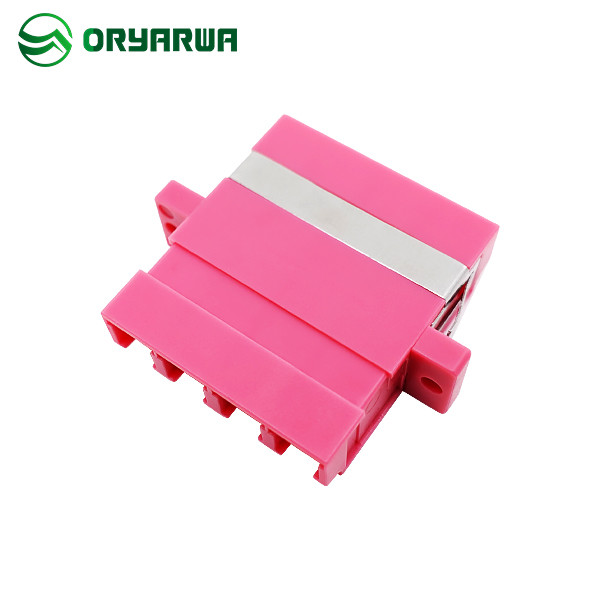

Flange Ceramic Sleeve LC Fiber Optic Adapter One Piece Type For CCTV System 0

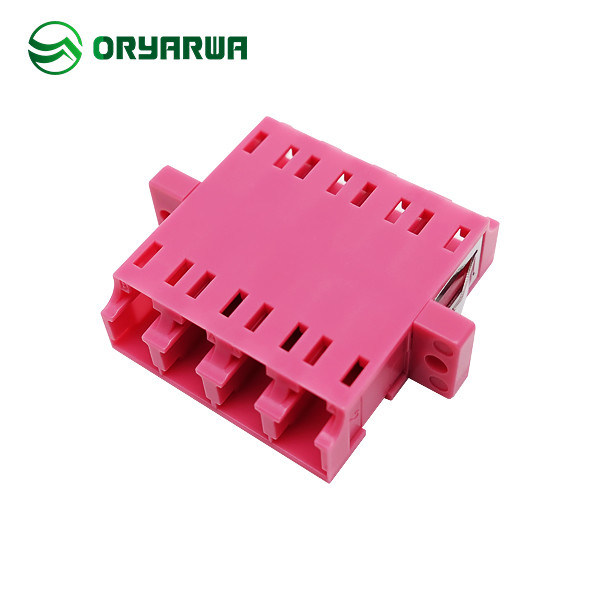

Flange Ceramic Sleeve LC Fiber Optic Adapter One Piece Type For CCTV System 1





Flange Ceramic Sleeve LC Fiber Optic Adapter One Piece Type For CCTV System 2



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-099 LC Adaptor Quad with Flange One piec...

OYH-JS-ZP-098 LC Adaptor Quad Flangeless One piece...
