Flangeless Duplex LC Optical Fiber Adapter Welded Shape With Window

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94 -V0 Model Number: LC Duplex Welded Fiber Optic Adapter

Detail Information

Product Name: Beige LC Duplex Welded Fiber Optic Adapter Color: Blue/Green/Aqua/Beige/OM4
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 1-2.5N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-20-2012 / IEC613000 Certification: ISO9001
High Light:

Flangeless Optical Fiber Adapter

,

Duplex LC Optical Fiber Adapter

,

Flangeless lc apc adapter

Product Description

Flangeless Duplex LC Optical Fiber Adapter Welded Shape With Window



Welded Shape Flangeless Duplex LC Fibre Optic Adaptor / Connector with Window



High Light: The symmetrical structure can be indefinitely extended and spliced



Detailed Product Description:

Product Name

LC Duplex Welded Fiber Optic Adapter

Color

Blue

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20-2012 / IEC61300



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

>With high-quality porcelain bushing;
>Low insertion loss, high echo loss;
>With excellent reliability and >Interchangeability;
>With high dimensional accuracy;
>Convenient to use and maintenance;



Fiber Optic Adapter Application:

>Telecommunication Network
>Testing Equipment
>Local Area Network(LAN)
>CATV
>Engineering Recovery
>FTTH
>Connect Different Types of Ceramic Ferrule Bores

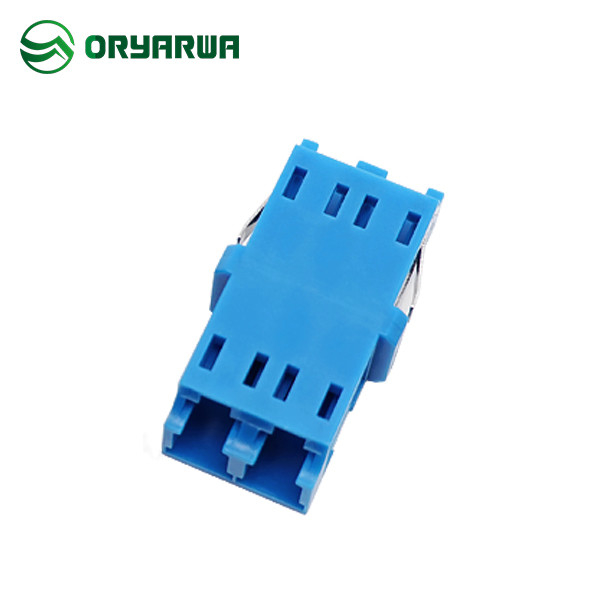

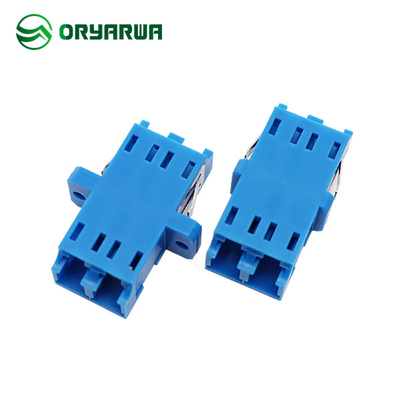

Flangeless Duplex LC Optical Fiber Adapter Welded Shape With Window 0Flangeless Duplex LC Optical Fiber Adapter Welded Shape With Window 1

Flangeless Duplex LC Optical Fiber Adapter Welded Shape With Window 2



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-031 LC Adaptor Duplex with Flange Welded...

OYH-JS-ZP-019 LC Adaptor Duplex Flangless Welded t...
