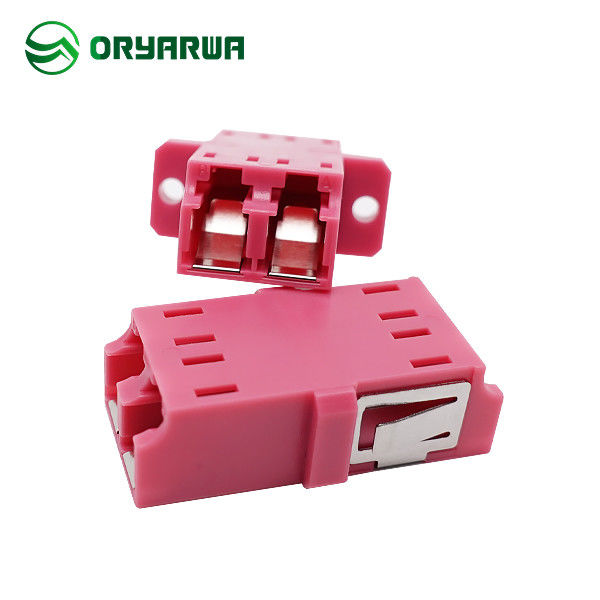

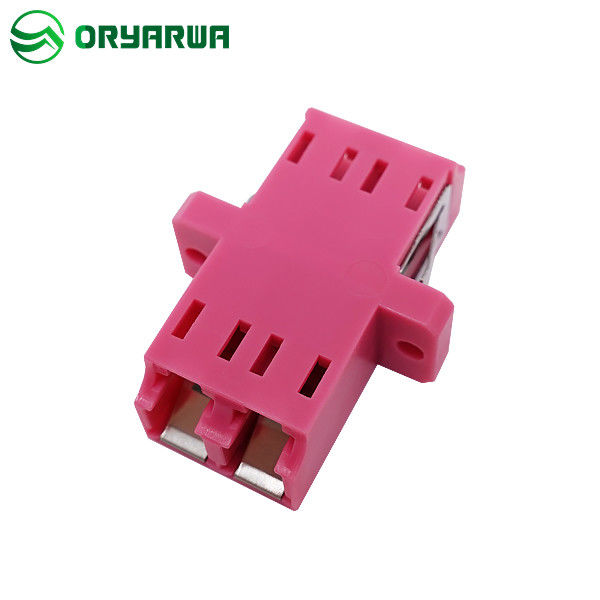

Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001

Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001

  • High Light

    OM4 Fuchsia Fiber Optic Adapter

    ,

    ISO9001 Fiber Optic Adapter

    ,

    OM4 Fuchsia lc fiber coupler

  • Product Name
    OM4 LC Duplex Fiber Optic Adaptor With Shutter
  • Color
    Violet / OM4 / Fushcia
  • Mode Type
    Singlemode, Multimode
  • Insertion Loss
    ≤0.2dB
  • Durability
    ≤0.2dB( 500 Times)
  • Sleeve Pull Force
    1-2.5N
  • Operating Temp.
    -40℃~+80℃
  • Storage Temp.
    -40℃~+80℃
  • Meeting Standards
    IEC61754-20-2012 / IEC613000
  • Certification
    ISO9001
  • Place of Origin
    Zhejiang
  • Brand Name
    Oryarwa
  • Certification
    RoHS/REACH/UL 94-V0
  • Model Number
    OM4 LC Duplex Fiber Optic Adaptor with Shutter
  • Minimum Order Quantity
    1000
  • Price
    Negotiate
  • Packaging Details
    25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN
  • Delivery Time
    3-14 Days
  • Payment Terms
    T/T
  • Supply Ability
    5000000 PCS/Month

Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001

Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001



OM4 Fushcia Duplex LC Fiber Optic Adapter with inner Shutter



Detailed Product Description:

Product Name

OM4 LC Duplex Fiber Optic Adaptor with Shutter

Color

Violet

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20-2012 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Good repeatability and exchange ability

> Auto shutter protects against dust and contaminants

> Strict testing standards and methods for quality

> UL-rated plastic housing

> Choice of housing material and sleeve material

> Environment protection (ROHS Compliance)

> Compliant with IEC, ROHS, REACH



Fiber Optic Adapter Application:

> Telecom network
> Ethernet network
> Optical communication equipment
> Patch panels, ODF and other optical connections.
> Optical networks demarcation and >monitoring point



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001 0Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001 1Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001 2



Inner Shutter Duplex LC Fiber Optic Adapter OM4 Fuchsia ISO9001 3



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-028 LC Adaptor Duplex Flangeless One pie...

OYH-JS-ZP-027 LC Adaptor Duplex with Flange One pi...
