| Minimum Order Quantity : | 1000 | Price : | Negotiate |
|---|---|---|---|
| Packaging Details : | 200sets/Nylon bag ; Carton: 47*24*34CM | Delivery Time : | 3-14 Days |
| Payment Terms : | T/T | Supply Ability : | 6000000 PCS/Month |
| Place of Origin: | Zhejiang | Brand Name: | Oryarwa |
|---|---|---|---|
| Certification: | RoHS/REACH/UL-V0 | Model Number: | Single Mode SC Fiber Optic Connector 0.9MM |
|
Detail Information |
|||
| Product Name: | Single Mode SC Fiber Optic Connector 0.9MM | 85/85 Test: | 2000H |
|---|---|---|---|
| Insertion Loss: | ≤0.2dB | Durability: | ≤0.2dB( 500 Times) |
| Cable OD: | 0.9MM | Mode Type: | Singlemode, Multimode |
| Boot Type: | 0.9MM Normal 15.3MM Boot | Boot Color: | Green/Blue/White/Aqua/Black/Red |
| Housing Color: | Green/Blue/Beige/Aqua/Fushcia | Housing Type: | General |
| Operating Temp.: | -40℃～+80℃ | Storage Temp.: | -40℃～+80℃ |
| Meet Standards: | IEC61754-4 / YD/T 1272.3 / GR326 | Certification: | ISO9001 |
| Highlight: | 15.3mm Single Mode Fiber Connector,900um Single Mode Fiber Connector,15.3mm single mode sc connector |
||
Product Description

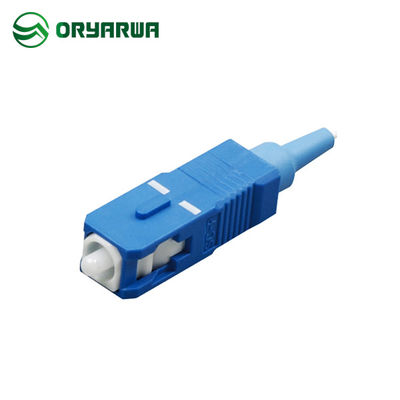

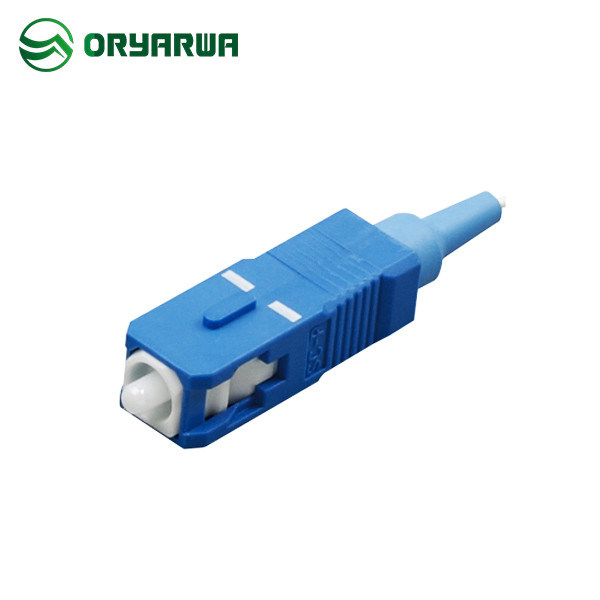

15.3mm Short Boot SC APC Single Mode Fiber Connector For 900um Cable
SC APC Standard Optic Single Mode Fiber Connector For 900um Cable with 15.3MM Short Boot
Detailed Product Description:
|
Product Name |
Single Mode SC Fiber Optic Connector 0.9MM | Color |
Green/Blue/Beige/Aqua |
|---|---|---|---|
|
Mode Type |
Singlemode, Multimode |
Insertion Loss |
≤0.2dB |
|
Sleeve Pull Force |
2-5.9N |
Durability |
≤0.2dB( 500 Times) |
|
Operating Temp. |
-40℃～+80℃ |
Standards |
IEC61754-4 / YD/T 1272.3 / GR326 |
Environmental and Mechanism:
| Properties | Test condition | Conformance | Test result |
|---|---|---|---|
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 500 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
| Temperature Cycling | 40ºC to +85ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%RH, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Features:
> Available in Flanged and Flangeless options
> Precision connection with sleeve
> Low insertion loss, High Return loss
> Good interchangeability and reliability
> Meet IEC and ROHS standards
> High precision of mechanical dimensions Accuracy
> IEC61754-4-2013 / IEC613000 compatible;
> Flammability UL94 V-0 standard
Application:
> Fiber Optic Telecommunications
> LAN (Local Area Network)
> FTTH (Fiber To The Home)
> CATV&CCTV System
> High speed transmission systems
> Fiber optic sensing
> Industrial, Mechanical and Military
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
Drawing:
OYH-JS-ZP-106 SC 0.9 mm Round Boot 15.3.pdf
