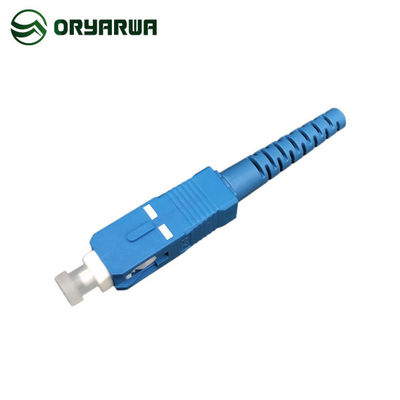

2.4mm Duplex Simplex SC Connector Square Boot Quick Connect Fiber Optic Connectors

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 200sets/Nylon bag ; Carton: 47*24*34CM Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-94 V0 Model Number: SC Fiber Optic Connector 2.4MM Square Boot

Detail Information

Product Name: SC Fiber Optic Connector 2.4MM Square Boot 85/85 Test: 2000H
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Cable OD: 2.4MM Mode Type: Singlemode, Multimode
Boot Type: 2.4MM 2.4MM Square Boot 40MM Boot Color: Green/Blue
Housing Color: Green/Blue/Beige/Aqua Housing Type: General
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meet Standards: IEC61754-4 / YD/T 1272.3 Certification: ISO9001
High Light:

2.4mm Simplex SC Connector

,

ISO9001 Simplex SC Connector

,

ISO9001 Fiber Optic Connectors

Product Description

2.4mm Duplex Simplex SC Connector Square Boot Quick Connect Fiber Optic Connectors



SC Fiber Optic Connector Non-Standard 2.4mm Simplex Duplex Square Boot Green Blue



Detailed Product Description:

Product Name

SC Fiber Optic Connector 2.4MM Square Boot Color

Green/Blue/Beige/Aqua

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-4 / YD/T 1272.3



Environmental and Mechanism:

Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:

> Field installable
> Insert loss less than 0.2dB
> Metal V-shape cavity work well in high and low temperature
> Installation less than 1 minutes
> Reliable and superior optical performance
> Cable Tensile test complies with Telcordia GR-326-COR


Application:

> Fiber Optic Telecommunications
> LAN (Local Area Network)
> FTTH (Fiber To The Home)
> CATV&CCTV System
> High speed transmission systems
> Fiber optic sensing
> Industtial, Mechanical and Military


FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.





Drawing:

OYH-JS-ZP-054 SC 2.4mm Square boot.pdf



Reports:

HA0121030746CHEM_PBT_REACH(HATEK).pdf

HA0121030732CHEM_PBT_ROHS(HATEK).pdf
