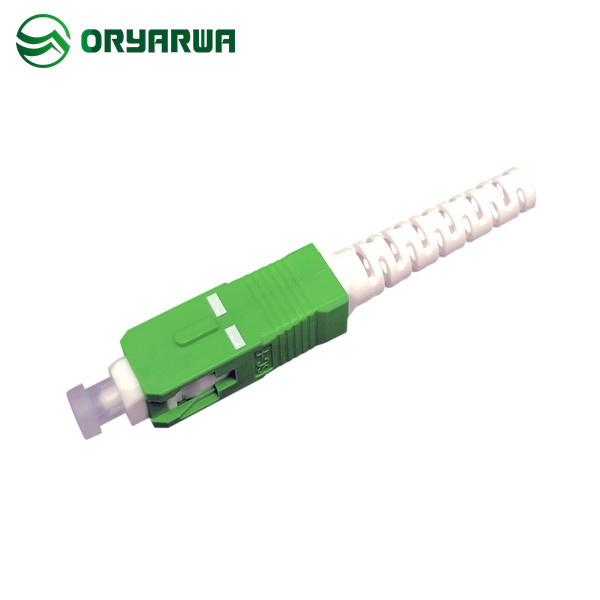

22mm Long Boot SC Single Mode Fiber Connector 0.9mm for CATV
Contact Person : Jenny
Phone Number : +86 135 3017 1335
WhatsApp : +8613530171335
|Minimum Order Quantity :||1000||Price :||Negotiate|
|Packaging Details :||200sets/Nylon bag ; Carton: 47*24*34CM||Delivery Time :||3-14 Days|
|Payment Terms :||T/T||Supply Ability :||6000000 PCS/Month|
|Place of Origin:||Zhejiang||Brand Name:||Oryarwa|
|Certification:||RoHS/REACH/UL-94 V0||Model Number:||SC Fiber Optic Connector 4.0MM Square Boot|
|Product Name:||SC Fiber Optic Connector 4.0MM Square Boot||85/85 Test:||2000H|
|Insertion Loss:||≤0.2dB||Durability:||≤0.2dB( 500 Times)|
|Cable OD:||4.0MM||Mode Type:||Singlemode, Multimode|
|Boot Type:||4.0MM Square Boot||Boot Color:||White|
|Housing Color:||Green/Blue/Beige/Aqua||Housing Type:||General|
|Operating Temp.:||-40℃～+80℃||Storage Temp.:||-40℃～+80℃|
|Meet Standards:||IEC61754-4 / YD/T 1272.3||Certification:||ISO9001|
4.0mm Single Mode Fiber Connector,
IEC Single Mode Fiber Connector,
4.0mm sc duplex fiber connector
4.0mm SC Single Mode Fiber Connector Duplex 40mm Square Long Boot
SC Fiber Optic Connector Non-Standard 4.0mm MM Simplex / Duplex Square Long Boot = 40MM
Detailed Product Description:
|SC Fiber Optic Connector 4.0MM Square Boot||Color||
Sleeve Pull Force
≤0.2dB( 500 Times)
IEC61754-4 / YD/T 1272.3
Environmental and Mechanism:
|Properties||Test condition||Conformance||Test result|
|Vibration||10-55Hz, 1.5mm, 60min||IEC61300-2-1||≤0.2dB|
|Mating Durability||500 Mating, clean every 25 mating.||IEC61300-2-2||≤0.2dB|
|Impact||1.5m, 8 drops||IEC61300-2-12||≤0.2dB|
|Strength of Coupling Mechanism||40N, 10Min, L=22-28cm||IEC61300-2-6||≤0.2dB|
|Temperature Cycling||40ºC to +85ºC, 40 cycles||IEC61300-2-22||≤0.2dB|
|Temperature humidty cycling||40ºC, 95%RH, 96Hr||IEC61300-2-21||≤0.2dB|
|Operating Temperature||-40ºC to +85ºC||≤0.2dB|
|Storage Temperature||-40ºC to +85ºC||≤0.2dB|
> Low insertional loss and back reflection loss
> High prcision alignment
> UL-rated plastic housing
> Compact design
> Telecommunication Network
> Testing Equipment
> Local Area Network(LAN)
> Engineering Recovery
> Connect Different Types of Ceramic Ferrule Bores
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
