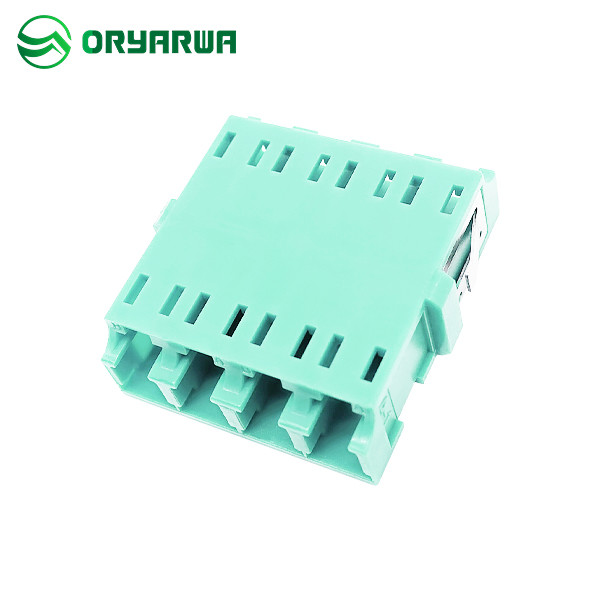

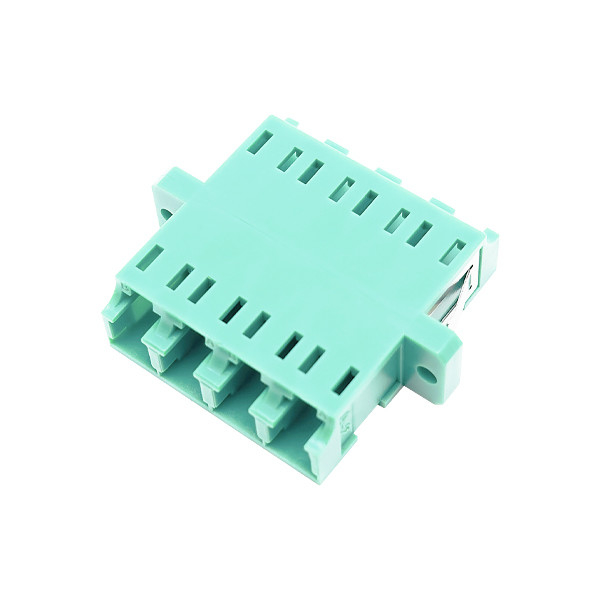

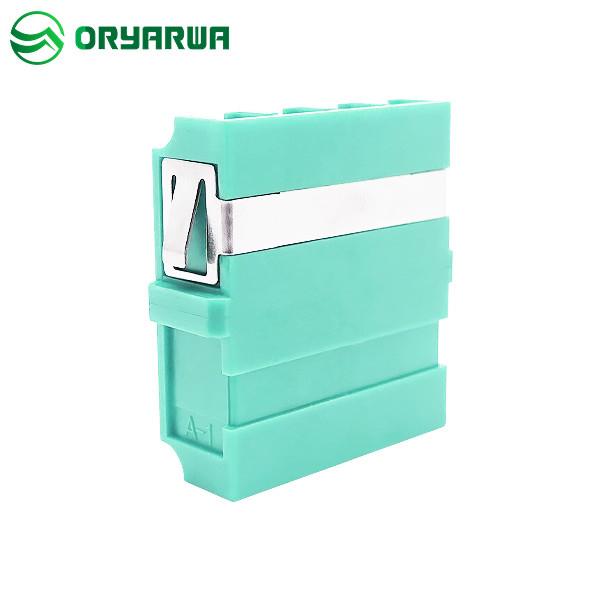

Welded Type LC Quad MM SM Fiber Adapter For Data Center Cabling

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94 -V0 Model Number: Aqua LC Quad Welded Fiber Optic Adapter

Detail Information

Product Name: Aqua LC Quad Welded Fiber Optic Adapter Color: Aqua
Mode Type: Single Mode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 1-2.5N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-20-2012 / IEC613000 Certification: RoHS
High Light:

RoHS LC SM Fiber Adapter


RoHS SM Fiber Adapter


RoHS LC mm fiber adapter

Product Description

Welded Type LC Quad MM SM Fiber Adapter For Data Center Cabling


LC Quad Welded Type SM MM Fiber Optic Adapter without Flange For Data Center Cabling


Detailed Product Description:

Product Name

Aqua LC Quad Welded Fiber Optic Adapter



Mode Type

Singlemode, Multimode

Insertion Loss


Sleeve Pull Force



≤0.2dB( 500 Times)

Operating Temp.



IEC61754-20-2012 / IEC61300


Environmental and Mechanism:


Test Condition


Test Result


10-55Hz, 1.5mm, 60min



Mating Durability

500 Mating, clean every 25 mating.




1.5m, 8 drops



Strength of Coupling Mechanism

40N, 10Min, L=22-28cm



Temperature Cycling

40ºC to +85ºC, 40 cycles



Temperature humidty cycling

40ºC, 95%RH, 96Hr



Operating Temperature

-40ºC to +85ºC



Storage Temperature

-40ºC to +85ºC





> Available without flanges or with flange for duplex, saving panel space
> High quality ceramic components and Material.
> Good repeatability and exchange ability
> Accurate external size
> Strict curing time and temperature control
> Strict testing standards and methods for quality
> 100% NEW raw material and well quality control ensure the best life time.


Fiber Optic Adapter Application:

> Test Equipment
> Telecommunication Networks
> Local Area Networks (LANs)
> Data Processing Networks
> Premise Installations
> Wide Area Networks (WANs)
> Industrial, Medical & Military
> CATV, Metro
> Active Device Termination



Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.


Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.


Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.


Q4: Can I do OEM/ODM?

Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.

Q5: What certifications do you have?


All our product meet IEC standard, pass REACH, RoHS test.

Welded Type LC Quad MM SM Fiber Adapter For Data Center Cabling 0Welded Type LC Quad MM SM Fiber Adapter For Data Center Cabling 1Welded Type LC Quad MM SM Fiber Adapter For Data Center Cabling 2Welded Type LC Quad MM SM Fiber Adapter For Data Center Cabling 3



LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



OYH-JS-ZP-029 LC Adaptor Quad with Flange Welded t...

OYH-JS-ZP-032 LC Adaptor Quad Flangless Welded typ...
