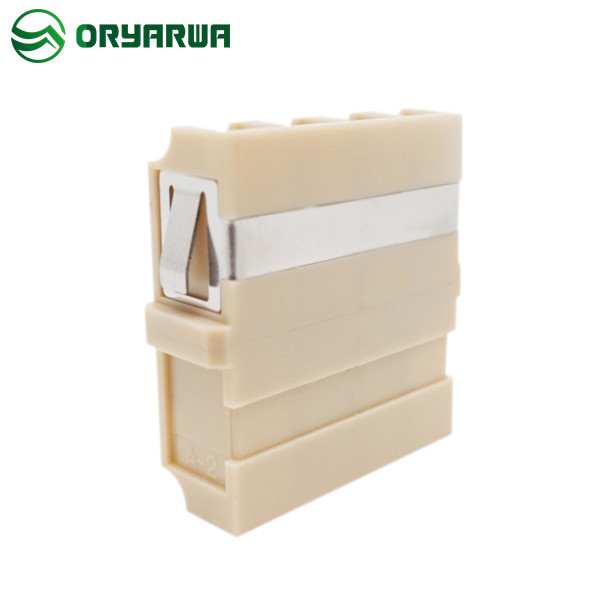

Beige LC Quad Multimode Fiber Adapter Plastic Material Welded Injection

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94 -V0 Model Number: Beige LC Quad Welded Fiber Optic Adapter

Detail Information

Product Name: Beige LC Quad Welded Fiber Optic Adapter Color: Beige
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 1-2.5N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-20-2012 / IEC613000 Certification: ISO9001
High Light:

CATV Multimode Fiber Adapter

,

RoHS CATV Multimode Fiber Adapter

,

CATV Multimode lc adapter

Product Description

Beige LC Quad Multimode Fiber Adapter Plastic Material Welded Injection



Beige LC Quad Plastic Material Welded injection Multimode Fiber Optic Adapter



Detailed Product Description:

Product Name

Beige LC Quad Welded Fiber Optic Adapter

Color

Beige

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20-2012 / IEC61300



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> All materials compliant with RoHS/REACH
> 100% Optic test (Insertion Loss)
> Good repeatability and exchange ability
> UL-rated plastic housing
> Strict curing time and temperature control
> Strict testing standards and methods for quality
> Individually packaged



Fiber Optic Adapter Application:

> CATV
> Telecommunication networks
> Metro
> Local Area Networks(LANs)
> Data processing networks
> Premise installation
> Gigabit Ethernet
> Active device/Transceiver
> Fiber Optic Subscriber network Transmission/switching equipment



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

Beige LC Quad Multimode Fiber Adapter Plastic Material Welded Injection 0Beige LC Quad Multimode Fiber Adapter Plastic Material Welded Injection 1Beige LC Quad Multimode Fiber Adapter Plastic Material Welded Injection 2Beige LC Quad Multimode Fiber Adapter Plastic Material Welded Injection 3Beige LC Quad Multimode Fiber Adapter Plastic Material Welded Injection 4



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-029 LC Adaptor Quad with Flange Welded t...

OYH-JS-ZP-032 LC Adaptor Quad Flangless Welded typ...
