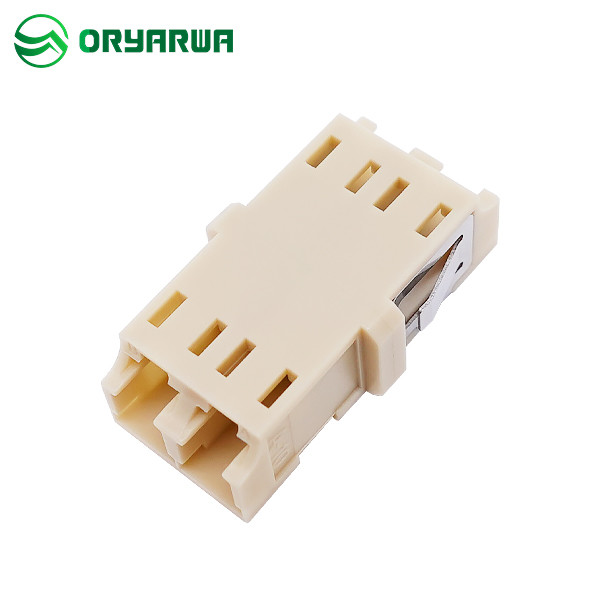

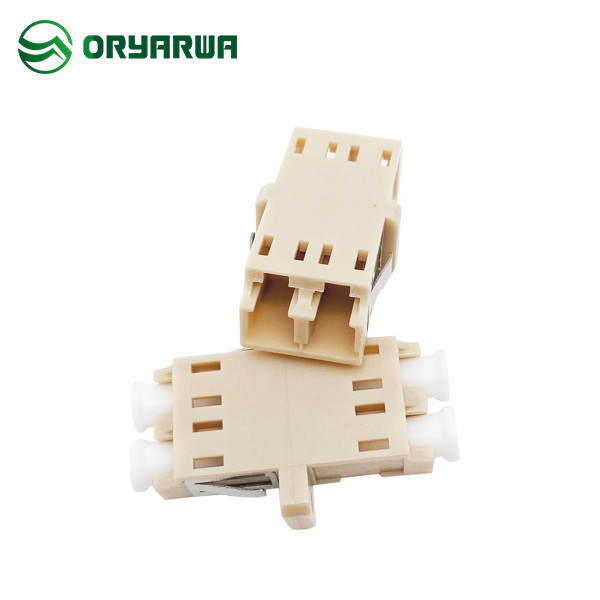

Ultrasonic Welded Duplex LC Fiber Optic Adaptor With Flange / Flangeless

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: Beige LC Duplex Welded Fiber Optic Adaptor

Detail Information

Certification: ISO9001 Product Name: Beige LC Duplex Welded Fiber Optic Adaptor
Color: Beige Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 1-2.5N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-20-2012 / IEC613000
High Light:

LC Fiber Optic Adaptor


Flangeless Fiber Optic Adaptor


Ultrasonic Welded LC Fiber Optic Adapter

Product Description

Ultrasonic Welded Duplex LC Fiber Optic Adaptor With Flange / Flangeless


Detailed Product Description:

Product Name

Beige LC Duplex Welded Fiber Optic Adaptor



Mode Type

Singlemode, Multimode

Insertion Loss


Sleeve Pull Force



≤0.2dB( 500 Times)

Operating Temp.



IEC61754-20-2012 / IEC61300


Environmental and Mechanism:


Test Condition


Test Result


10-55Hz, 1.5mm, 60min



Mating Durability

500 Mating, clean every 25 mating.




1.5m, 8 drops



Strength of Coupling Mechanism

40N, 10Min, L=22-28cm



Temperature Cycling

40ºC to +85ºC, 40 cycles



Temperature humidty cycling

40ºC, 95%RH, 96Hr



Operating Temperature

-40ºC to +85ºC



Storage Temperature

-40ºC to +85ºC




Fiber Optic Adaptor Features:

> Excellent changeability and directivity
> High quality ceramic components and Material

> High temperature stability

> All materials compliant with RoHS/REACH


Fiber Optic Adaptor Application:

> Premise installation
> Wide Area Networks(WANs)
> Engineering Recovery
> Data processing networks


Ultrasonic Welded Duplex LC Fiber Optic Adaptor With Flange / Flangeless 0Ultrasonic Welded Duplex LC Fiber Optic Adaptor With Flange / Flangeless 1Ultrasonic Welded Duplex LC Fiber Optic Adaptor With Flange / Flangeless 2


Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand of fiber optic adapter and connector. we are glad to provide free sample,

our clients just need offer express account and pay the freight.


Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.


Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.


Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.

Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



OYH-JS-ZP-031 LC Adaptor Duplex with Flange Welded...

OYH-JS-ZP-019 LC Adaptor Duplex Flangless Welded t...
