Singlemode LC Fiber Optic Adapter Simplex Welded Type

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: LC Simplex Welded Type Adapter

Detail Information

Certification: ISO9001 Product Name: LC Simplex Welded Type Flangeless Adapter
Color: Blue/Green/Aqua/Beige/OM4 Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 1-2.5N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-20-2012 / IEC613000
High Light:

LC Fiber Optic Adapter Simplex

,

LC Fiber Optic Adapter Welded Type

Product Description

LC Fiber Optic Adapter LC Simplex Welded Type



Detailed Product Description:

Product Name

LC Simplex Welded Type Fiber Optic Adapter Color

Blue/Green/Aqua/Beige/OM4

Mode Type Singlemode, Multimode Insertion Loss ≤0.2dB
Sleeve Pull Force

1-2.5N

Durability ≤0.2dB( 500 Times)
Operating Temp. -40℃~+80℃ Standards

IEC61754-20-2012 / IEC613000



Environmental and Mechanism:

Properties Test Condition Conformance Test Result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:

> Compliant with IEC874-20-2012
> Low insertion loss and back reflection loss
> Compact design
> Infinitely splicing



Fiber Optic Adapter Application:

> CATV
> Active device termination
> Telecommunication networks
> Test equipment
> Premise installation
> Wide Area Networks(WANs)

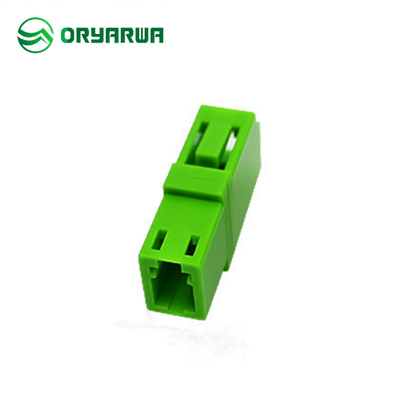

Singlemode LC Fiber Optic Adapter Simplex Welded Type 0

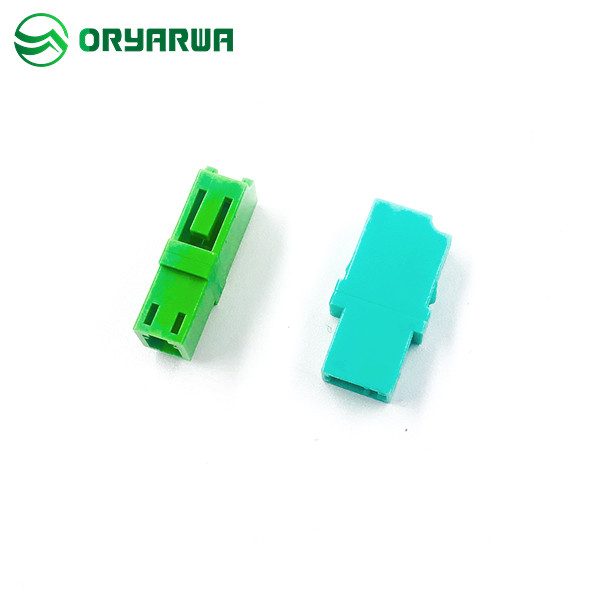

Singlemode LC Fiber Optic Adapter Simplex Welded Type 1Singlemode LC Fiber Optic Adapter Simplex Welded Type 2



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-021(LC Sx Welded Type)-Model.pdf
