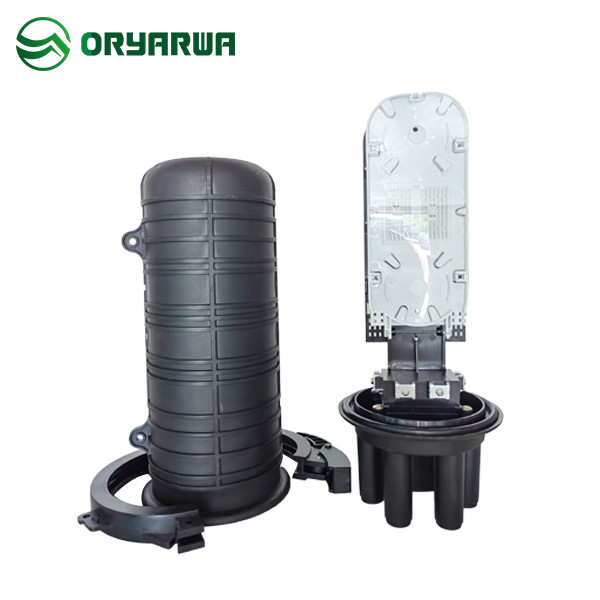

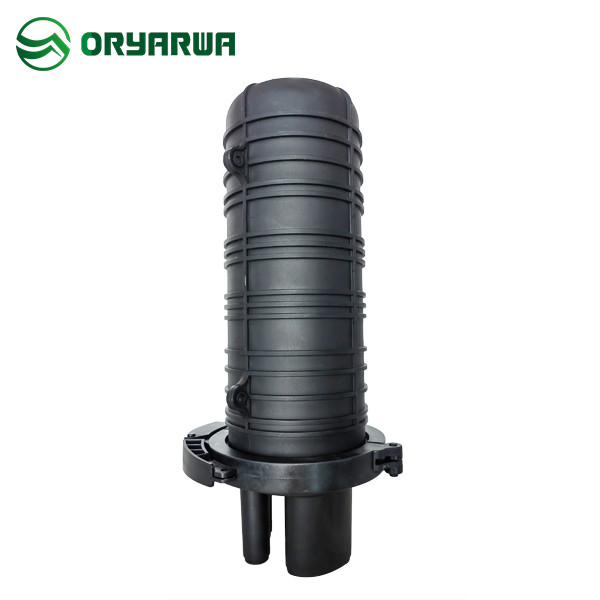

24/48/72/96/120 Cores Fiber Cable Fiber Optic Closure For FTTH

Minimum Order Quantity : 10 Price : Negotiate
Packaging Details : Single carton packing Delivery Time : 5-14 Days
Payment Terms : T/T Supply Ability : 500000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: CE/RoHS Model Number: CV012

Detail Information

Product Name: Fiber Optic Splice Closure Material: PP
Type: Dome Vertical Type Weight: 1.9 Kg
Dimension: 168 X 434.5mm Cable OD: 8-20 MM
Cable Entry & Exit: 3 Round Port + 1 Oval Port Splice Tray Qty: ≤ 5 PCS
Splice Tray Capacity: ≤ 24 Fibers Capacity Of Cores: ≤120 Cores
Sealing Structure: Heat Shrinkable Sealing Water Proof Grade: IP68
High Light:

96 Cores Fiber Optic Closure

,

120 Cores Fiber Optic Closure

,

PP Fiber Optic Splice Closure

Product Description

24/48/72/96/120 Cores Fiber Cable Vertical Joint Box FTTH Fiber Optic Closure



Fiber Optic Closure Accessories:

 Product Name

 Fiber Optic Splice Closure  Color

 Black

 Accessories List  Standard part

 1.Transparent Bare fiber protect tube

 2. Sealing Heat shrinkable tube
 3. Heat shrinkable protection sleeve
 4. Cable tie
 5. Mounting hoop
 6. Insulating tape
 Optional part

  Pole mounting

  Wall mounting



Fiber Optic Closure Scheme:

  Fiber Cores Splice Tray
  24 cores  PP/ 3 round+1 oval port/ Heat shrinkable sealing/ 1 splice tray
  48 cores  PP/ 3 round+1 oval port/ Heat shrinkable sealing/ 2 splice tray
  72 cores  PP/ 3 round+1 oval port/ Heat shrinkable sealing/ 3 splice tray
  96 cores  PP/ 3 round+1 oval port/ Heat shrinkable sealing/ 4 splice tray
 120 cores  PP/ 3 round+1 oval port/ Heat shrinkable sealing/ 5 splice tray



Fiber Optic Closure Features:

> High quality ABS, PP, material optional, not easy aging.
> With anti-aging, corrosion resistance, high temperature and high mechanical strength.
> Wide application range, with good sealing performance.

> Well water and dust proof.
> can be opened and reused after sealing.
> Convenient for installation.



Fiber Optic Closure Application:

> Aerial-hanged
> Pole-mounting
> Wall mounted

24/48/72/96/120 Cores Fiber Cable Fiber Optic Closure For FTTH 024/48/72/96/120 Cores Fiber Cable Fiber Optic Closure For FTTH 124/48/72/96/120 Cores Fiber Cable Fiber Optic Closure For FTTH 224/48/72/96/120 Cores Fiber Cable Fiber Optic Closure For FTTH 3



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide sample,



Q2: What is your MOQ?

Our MOQ is 10PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet CE, RoHS standard.
