OEM Ceramic Sleeve SC To FC Simplex Hybrid Fiber Adapter Single Mode

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94 -V0 Model Number: SC to FC Hybrid Fiber Optic Adapter

Detail Information

Product Name: SC To FC Hybrid Fiber Optic Adapter Color: Green/Blue/Beige/Aqua/Violet
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 2-5.9N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC613000 Certification: ISO9001
High Light:

Ceramic Sleeve Hybrid Fiber Adapter

,

IEC Hybrid Fiber Adapter

,

Ceramic Sleeve sc fc adapter

Product Description

OEM Ceramic Sleeve SC To FC Simplex Hybrid Fiber Adapter Single Mode



Fiber Optic Adaptor SC to FC Simplex Hybrid Fiber Adapter





Detailed Product Description:

Product Name

SC to FC Hybrid Fiber Optic Adapter

Color

Green/Blue/Beige/Aqua/Violet

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Low insertional loss and back reflection loss

> High interchangeability

> High performance interconnections offer very low insertion loss.

> All materials compliant with RoHS/REACH

> Compact packing

> Can be used in Local Area Networks (LANs), Storage Area Networks (SANs), Wide Area Networks (WAN),



Fiber Optic Adapter Application:

High speed transmission systems

Fiber optic sensing

Industrial, Mechanical and Military

Fiber Optic Telecommunications

LAN (Local Area Network)

FTTH (Fiber To The Home)

CATV&CCTV System



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

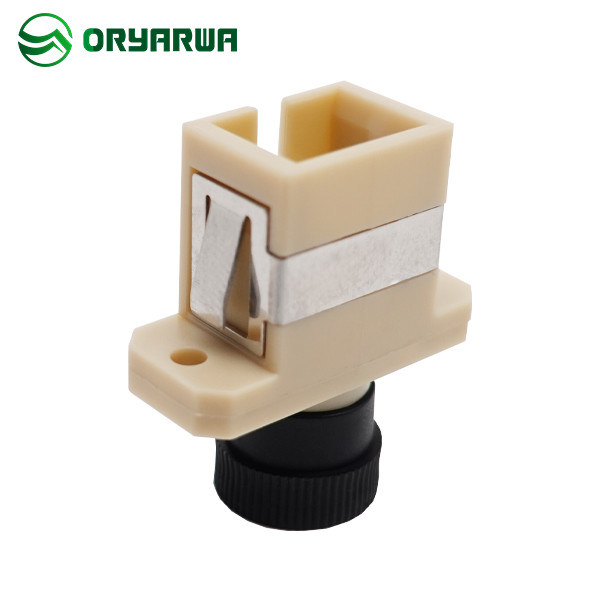

OEM Ceramic Sleeve SC To FC Simplex Hybrid Fiber Adapter Single Mode 0OEM Ceramic Sleeve SC To FC Simplex Hybrid Fiber Adapter Single Mode 1



OEM Ceramic Sleeve SC To FC Simplex Hybrid Fiber Adapter Single Mode 2



Drawing:

OYH-JS-ZP-088 SC-FC PLASTIC SX.pdf



Reports:

HA0121030733CHEM_PC_ROHS(HATEK).pdf

HA0121030747CHEM_PC_REACH(HATEK).pdf

HA0121030746CHEM_PBT_REACH(HATEK).pdf

HA0121030732CHEM_PBT_ROHS(HATEK).pdf
