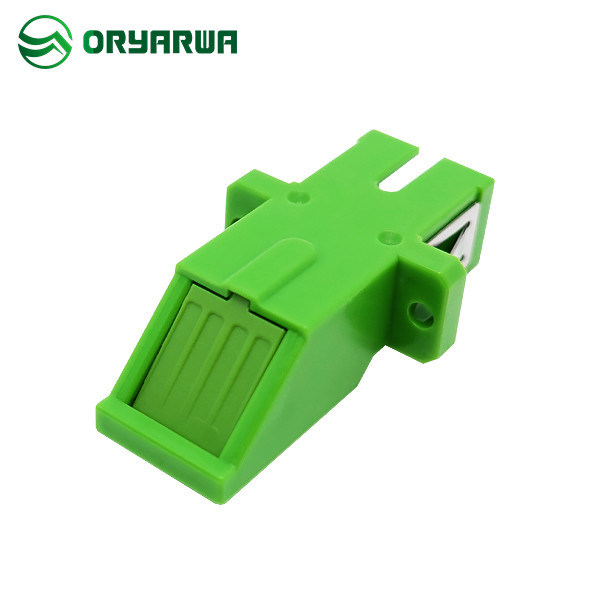

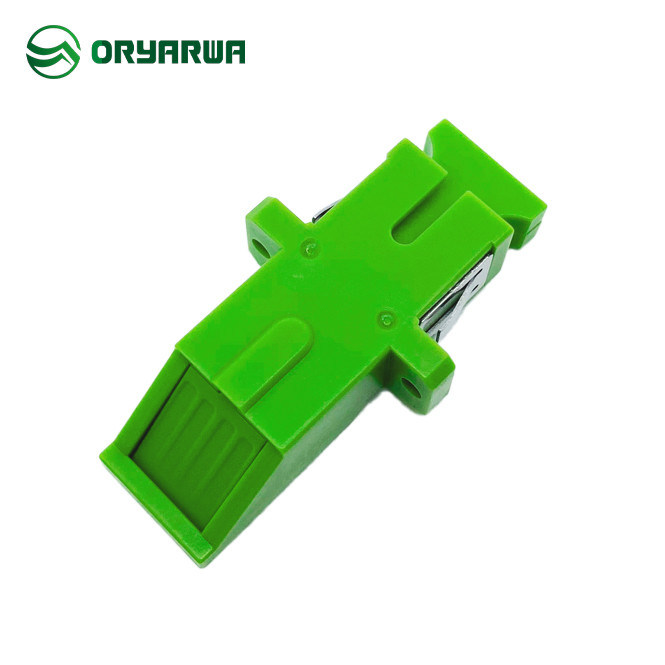

Flange SC Simplex Fiber Optic Adapter Push In Type With Inner Shutter

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: SC Push-in Type Fiber Optic Adaptor with Shutter

Detail Information

Certification: ISO9001 Product Name: SC Push-in Type Fiber Optic Adaptor With Shutter
Color: Green/Blue/Aqua/Beige/OM4 Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 2-5.9N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-4-2013 / IEC613000
High Light:

Flange SC Simplex Fiber Optic Adapter

,

SC Simplex Adapter Push In Type

,

Fiber Optic Adapter With Inner Shutter

Product Description

Fiber Optic Adaptor SC Simplex Push-in Type Flange With Inner Shutter



Detailed Product Description:

Product Name

SC Push-in Type Fiber Optic Adaptor with Shutter

Color

Green/Blue/Beige

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~ + 80℃

Standards

IEC61754-4-2013 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Fiber Optic Adaptor Features:

> Eye-Protection
> Panel clip for easy installation
> Precision anti-rotation key and corrosion resistant body

> Strict curing time and temperature control


Fiber Optic Adaptor Application:

> Patch panels
> Distribution frames
> Maintenance or emergency restoration of fiber networks
> FTTH Outlets



Flange SC Simplex Fiber Optic Adapter Push In Type With Inner Shutter 0Flange SC Simplex Fiber Optic Adapter Push In Type With Inner Shutter 1

Flange SC Simplex Fiber Optic Adapter Push In Type With Inner Shutter 2Flange SC Simplex Fiber Optic Adapter Push In Type With Inner Shutter 3



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand fiber optic adaptor and connector. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Reports:

LC Adapter -PC Material-RoHS(HATEK).pdf

LC Adapter_PC Material_REACH(HATEK).pdf



Drawing:

OYH-JS-ZP-010 SC Adaptor outer shutter Flangeless....

OYH-JS-ZP-009 SC Adaptor outer shutter with flange...
