Flange One Piece Molding SC Duplex Fiber Adapter Innner Shutter ISO9001

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: Green SC Duplex One Piece Type Fiber Optic Adapter with Shutter

Detail Information

Certification: ISO9001 Product Name: Green SC Duplex One Piece Type Fiber Optic Adapter With Shutter
Color: Green Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.1dB( 500 Times)
Sleeve Pull Force: 2-5.9N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-4-2013 / IEC613000
High Light:

ISO9001 SC Duplex Fiber Adapter

,

RoHS SC Duplex Fiber Adapter

,

ISO9001 duplex sc adapter

Product Description

Flange One Piece Molding SC Duplex Fiber Adapter Innner Shutter ISO9001



SC Duplex Flange One Piece Molding Fiber Optic Adapter with Shutter



Hight Light: This product with good performerce laser proof with innner shutter



Detailed Product Description:

Product Name

Green SC Duplex One Piece Type Fiber Optic Adapter with Shutter

Color

Green

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~ + 80℃

Standards

IEC61754-4-2013 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> With/Without flange Optional

> Zirconia sleeves

> Low insertion loss, High Return loss

> UL-rated plastic housing

> Environment protection (ROHS Compliance)

> High precision of mechanical dimensions Accuracy

> IEC61754-4-2013 / IEC613000 compatible;

> Flammability UL94 V-0 standard



Fiber Optic Adapter Application:

> Local Area Network
> CATV System
> Telecommunication Networks
> Equipment Test

> Testing and Medical Devices

> Optical Fiber LAN and Access Network

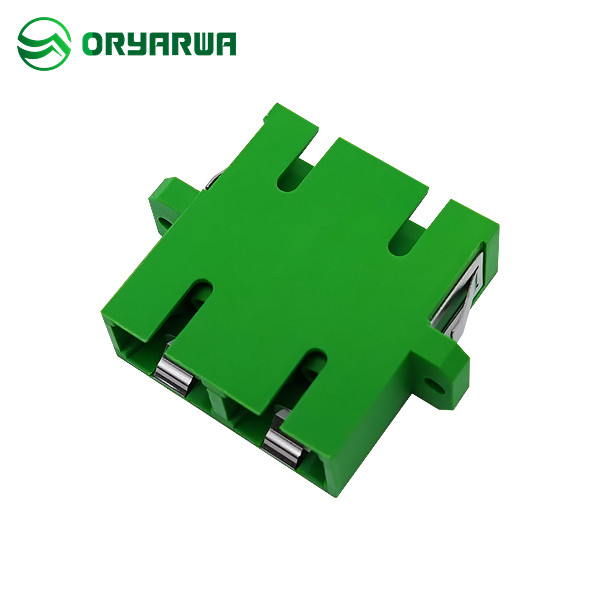

Flange One Piece Molding SC Duplex Fiber Adapter Innner Shutter ISO9001 0

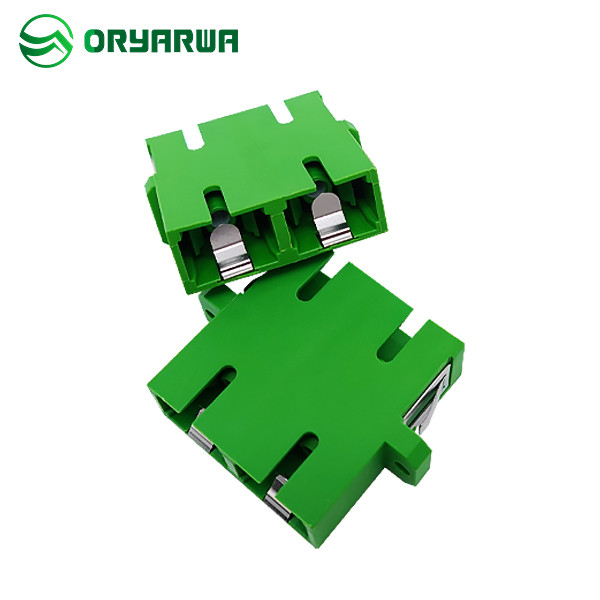

Flange One Piece Molding SC Duplex Fiber Adapter Innner Shutter ISO9001 1



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Reports:

HA0121030732CHEM_PBT_ROHS(HATEK).pdf

HA0121030746CHEM_PBT_REACH(HATEK).pdf



Drawing:

OYH-JS-ZP-191 SC Adaptor Duplex Flangless One piec...

OYH-JS-ZP-194 SC Adaptor Duplex with Flange One pi...
