CATV CCTV Fiber SC Adapter One Piece Molding With Ceramic Sleeve

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94-V0 Model Number: Blue SC Simplex One Piece Type Fiber Optic Adapter

Detail Information

Product Name: Blue SC Simplex One Piece Type Fiber Optic Adapter Color: Blue
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 2-5.9N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-4-2013 / IEC613000 Certification: ISO9001
High Light:

CATV Fiber SC Adapter

,

IEC Fiber SC Adapter

,

CATV sc to lc adapter

Product Description

CATV CCTV Fiber SC Adapter One Piece Molding With Ceramic Sleeve



CATV High Return Loss SX One Piece Molding SC Fiber Optic Adapter with Ceramic Sleeve Flangeless



Detailed Product Description:

Product Name

Blue SC Simplex One Piece Type Fiber Optic Adapter Color Blue/Beige/Aqua/Violet
Mode Type Singlemode, Multimode Insertion Loss ≤0.2dB
Sleeve Pull Force 2-5.9N Durability ≤0.2dB( 500 Times)
Operating Temp. -40℃~+80℃ Standards

IEC61754-4-2013 / IEC613000



Environmental and Mechanism:

Properties Test Condition Conformance Test Result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:

> Low insertion loss
Complies with IEC 61754-4, Flammability UL94 V-0 standard
> Precision connection with zirconia sleeve
> Reliability>Reliable and superior optical performance

> OEM ODM serivce new product design ability



Fiber Optic Adapter Application:

> Fiber Optic Telecommunications
> LAN (Local Area Network)
> FTTH (Fiber To The Home)
> CATV&CCTV System
> High speed transmission systems
> Fiber optic sensing
> Industtial, Mechanical and Military



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

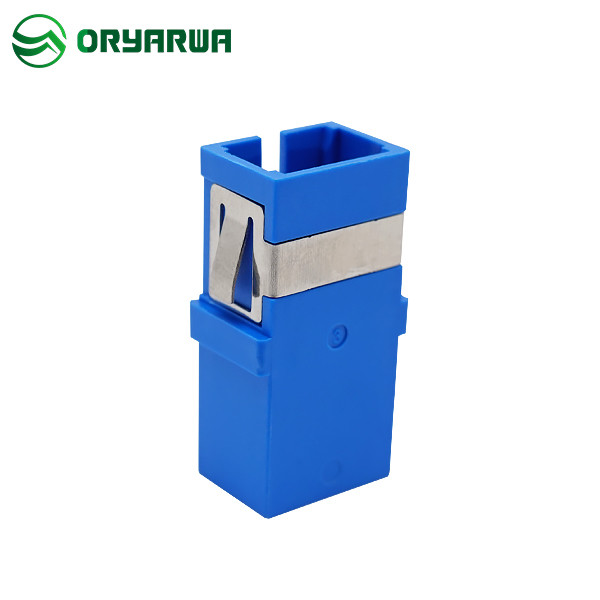

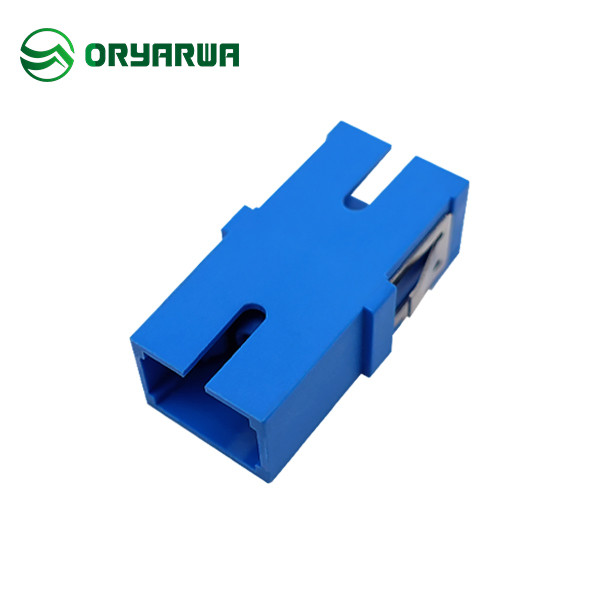

CATV CCTV Fiber SC Adapter One Piece Molding With Ceramic Sleeve 0CATV CCTV Fiber SC Adapter One Piece Molding With Ceramic Sleeve 1

CATV CCTV Fiber SC Adapter One Piece Molding With Ceramic Sleeve 2



CATV CCTV Fiber SC Adapter One Piece Molding With Ceramic Sleeve 3



Reports:

HA0121030746CHEM_PBT_REACH(HATEK).pdf

HA0121030732CHEM_PBT_ROHS(HATEK).pdf



Drawing:

OYH-JS-ZP-215 SC Adaptor Simplex Flangless One pie...

OYH-JS-ZP-216 SC Adaptor Simplex with Flange One p...
