Flange Metal Material Duplex ST Fiber Adapter Single Mode OEM ODM

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: Yellow ST Duplex Metal Type Fiber Optic Adapter

Detail Information

Certification: ISO9001 Product Name: Yellow ST Duplex Metal Type Fiber Optic Adapter
Color: Metal / Yellow Dust Cap Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 2-5.9N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: YD/T 987-1998 / IEC613000
High Light:

FTTH ST Fiber Adapter

,

ODM ST Fiber Adapter

,

FTTH lc to st adapter

Product Description

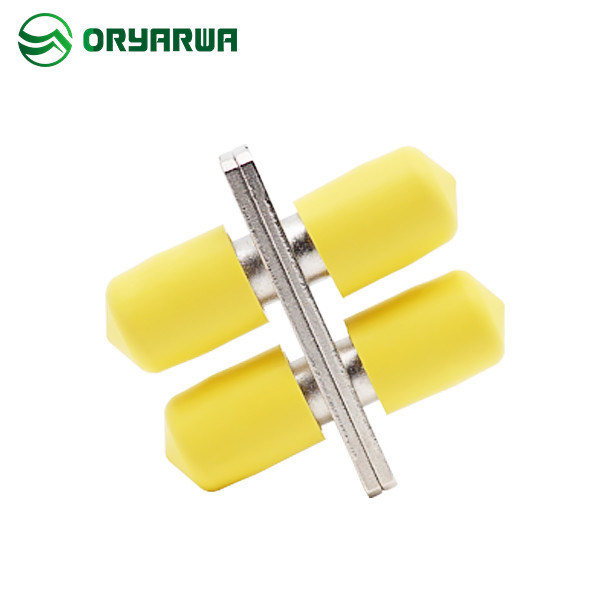

Flange Metal Material Duplex ST Fiber Adapter Single Mode OEM ODM



SC Type Flange Metal Material Duplex ST Fiber Optic Adapter



Detailed Product Description:

Product Name

Yellow ST Duplex Metal Type Fiber Optic Adapter

Color

Metal / Yellow Dust Cap

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

YD/T 987-1998 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> All standard and hybird types are offered in both multimode and single mode construction
> High performance interconnections offer very low insertion loss.
> Customer designed specification
> Compact packing



Fiber Optic Adapter Application:

> High speed transmission systems
> Fiber optic sensing
> Industrial, Mechanical and Military
> Fiber Optic Telecommunications
> LAN (Local Area Network)
> FTTH (Fiber To The Home)
> CATV&CCTV System



Flange Metal Material Duplex ST Fiber Adapter Single Mode OEM ODM 0

Flange Metal Material Duplex ST Fiber Adapter Single Mode OEM ODM 1

Flange Metal Material Duplex ST Fiber Adapter Single Mode OEM ODM 2



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Drawing:

OYH-JS-ZP-262 ST Duplex Metal SC foot print -Model...



Reports:

HA0121030753CHEM_TPE_REACH(HATEK).pdf

HA0121030739CHEM_TPE_ROHS(HATEK).pdf
