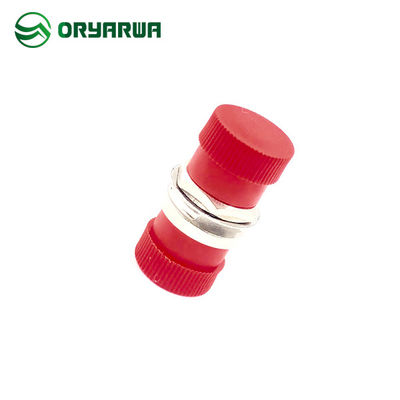

Metal Round FC Fiber Adapter Flangeless Little D Type Multimode

Metal Round FC Fiber Adapter Flangeless Little D Type Multimode

  • High Light

    Flangeless FC Fiber Adapter

    ,

    ISO9001 FC Fiber Adapter

    ,

    Flangeless fc fiber optic adaptors

  • Product Name
    Red FC Simplex Metal Fiber Optic Adapter
  • Color
    Metal-Plastic Red Dust Cap
  • Mode Type
    Singlemode, Multimode
  • Insertion Loss
    ≤0.2dB
  • Durability
    ≤0.2dB( 500 Times)
  • Sleeve Pull Force
    2-5.9N
  • Operating Temp.
    -40℃~+80℃
  • Storage Temp.
    -40℃~+80℃
  • Meeting Standards
    IEC61754-13-2006 / IEC613000
  • Certification
    ISO9001
  • Place of Origin
    Zhejiang
  • Brand Name
    Oryarwa
  • Certification
    RoHS/REACH/UL-94 V0
  • Model Number
    Red FC Simplex Metal Fiber Optic Adapter
  • Minimum Order Quantity
    1000
  • Price
    Negotiate
  • Packaging Details
    25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN
  • Delivery Time
    3-14 Days
  • Payment Terms
    T/T
  • Supply Ability
    5000000 PCS/Month

Metal Round FC Fiber Adapter Flangeless Little D Type Multimode

Metal Round FC Fiber Adapter Flangeless Little D Type Multimode



FC Simplex Fiber Optic Adaptor Metal Round Little D Type Compact Structure without Flange



Detailed Product Description:

Product Name

Red FC Simplex Metal Fiber Optic Adapter

Color

Metal-Red Plastic Dust Cap

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-13-2006 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> FC PC / UPC fiber optic adaptor

> Good repeatability.
> Strict testing standards and methods for quality
> Good compatibility High precision of mechanical dimensions
> Excellent mechanical endurance
> OS1 OS2 FC to FC(Female to Female) Simplex Fiber Optic Adapter / Coupler.



Fiber Optic Adapter Application:

> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTX
> Testing Equipment
> Fiber LAN



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.
