Single Mode Flange FC Fiber Optic Adapter Metal Housing JIS Standard

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: Red FC Duplex Metal Fiber Optic Adapter

Detail Information

Certification: ISO9001 Product Name: Red FC Duplex Metal Fiber Optic Adapter
Color: Metal-Red Dust Cap Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 2-5.9N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-13-2006 / IEC613000
High Light:

JIS FC Fiber Optic Adapter


IEC FC Fiber Optic Adapter


JIS fc to lc fiber adapter

Product Description

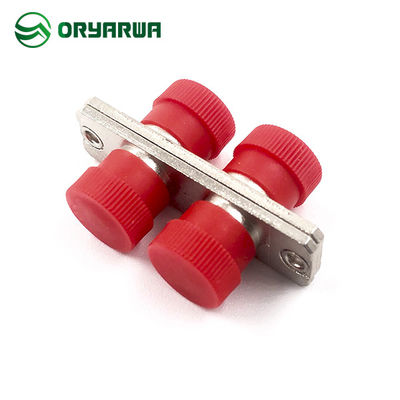

Single Mode Flange FC Fiber Optic Adapter Metal Housing JIS Standard


FC Duplex Metal Housing Fiber Optic Coupler with Flange


Detailed Product Description:

Product Name

Red FC Duplex Metal Fiber Optic Adapter


Metal-Red Dust Cap

Mode Type

Singlemode, Multimode

Insertion Loss


Sleeve Pull Force



≤0.2dB( 500 Times)

Operating Temp.



IEC61754-13-2006 / IEC613000


Environmental and Mechanism:


Test Condition


Test Result


10-55Hz, 1.5mm, 60min



Mating Durability

500 Mating, clean every 25 mating.




1.5m, 8 drops



Strength of Coupling Mechanism

40N, 10Min, L=22-28cm



Temperature Cycling

40ºC to +85ºC, 40 cycles



Temperature humidty cycling

40ºC, 95%RH, 96Hr



Operating Temperature

-40ºC to +85ºC



Storage Temperature

-40ºC to +85ºC





> UPC or APC Optional
> Excellent Temperature stability
> Free-floating ceramic ferrule
> Simplex , Duplex or Quad Optional
> D-shaped easily installs into panel mount
> High reliability & stability Ceramic or Bronze Sleeve
> Comply with IEC, Telcordia GR 326 and JIS standard


Fiber Optic Adapter Application:


> Telecommunication networks
> Test equipment
> Metro
> Local Area Networks(LANs)
> Data processing networks


Single Mode Flange FC Fiber Optic Adapter Metal Housing JIS Standard 0

Single Mode Flange FC Fiber Optic Adapter Metal Housing JIS Standard 1



Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.


Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.


Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.


Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.

Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.
