Flange Simplex Fiber LC To SC Adapter Hybrid Multimode ROHS Standard

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: LC to SC Hybrid Fiber Optic Adapter

Detail Information

Certification: ISO9001 Product Name: LC To FC Hybrid Fiber Optic Adapter
Color: Green/Blue/Beige/Aqua/Violet Mode Type: Singlemode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 2-5.9N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC613000
High Light:

Flange LC To SC Adapter

,

ROHS Fiber LC To SC Adapter

,

Flange fiber adapter lc to sc

Product Description

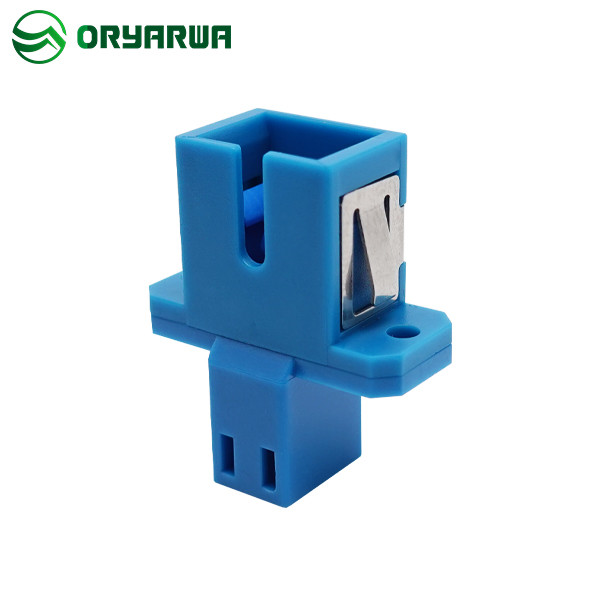

Flange Simplex Fiber LC To SC Adapter Hybrid Multimode ROHS Standard



LC to SC Simplex Plastic Fiber Optic Hybrid Fiber Adapter with Flange



Detailed Product Description:

Product Name

LC to SC Hybrid Fiber Optic Adapter

Color

Green/Blue/Beige/Aqua/Violet

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Available with single-core & multi core patch cords and pigtail.
> Low insertion loss, high return loss
> Customer defined specifications
> Good interchangeability

> Compliant with IEC, ROHS, REACH
> Precision anti-rotation key and corrosion resistant body

> All standard and hybird types are offered in both multimode and single mode construction



Fiber Optic Adapter Application:

> CATV
> Telecommunication networks
> Metro
> Local Area Networks(LANs)
> Data processing networks
> Premise installation
> Gigabit Ethernet
> Active device/Transceiver
> Fiber Optic Subscriber network Transmission/switching equipment



Flange Simplex Fiber LC To SC Adapter Hybrid Multimode ROHS Standard 0Flange Simplex Fiber LC To SC Adapter Hybrid Multimode ROHS Standard 1

Flange Simplex Fiber LC To SC Adapter Hybrid Multimode ROHS Standard 2

Flange Simplex Fiber LC To SC Adapter Hybrid Multimode ROHS Standard 3



Drawing:

OYH-JS-ZP-090 Hybrid Adaptor LC-SC.pdf



Reports:

HA0121030733CHEM_PC_ROHS(HATEK).pdf

HA0121030747CHEM_PC_REACH(HATEK).pdf

HA0121030746CHEM_PBT_REACH(HATEK).pdf

HA0121030732CHEM_PBT_ROHS(HATEK).pdf
