Flange Simplex SC Fiber Optic Adapter Beige Color For Telecommunications

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94-V0 Model Number: Beige SC Simplex One Piece Type Fiber Optic Adapter

Detail Information

Product Name: Beige SC Simplex One Piece Type Fiber Optic Adapter Color: Beige
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 2-5.9N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-4-2013 / IEC613000 Certification: ISO9001
High Light:

Simplex SC Fiber Optic Adapter

,

5.9N SC Fiber Optic Adapter

,

Flange sc simplex adapter

Product Description

Flange Simplex SC Fiber Optic Adapter Beige Color For Telecommunications



SC Simplex Flange Beige Color Compact Design Fiber Optic Adapter



Detailed Product Description:

Product Name

Beige SC Simplex One Piece Type Fiber Optic Adapter Color Beige
Mode Type Singlemode, Multimode Insertion Loss ≤0.2dB
Sleeve Pull Force 2-5.9N Durability ≤0.2dB( 500 Times)
Operating Temp. -40℃~+80℃ Standards

IEC61754-4-2013 / IEC613000



Environmental and Mechanism:

Properties Test Condition Conformance Test Result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:

> Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
> Cable, pigtails, patch cords are running through own path without disturbing each other,

  cassette type SC adapter installation, easy maintenance.
> Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way,

  easy for maintenance and installation.
> Cabinet can be installed by the way of wall-mounted or poled-mounted,

   suitable for both indoor and outdoor uses.



Fiber Optic Adapter Application:

> Telecommunications
> Acccess network
> Optic fiber CATV LAN and Access >Network
> Terminal of the devices multimedia
> Testing and hospital deveces
> Other industry and military applications



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

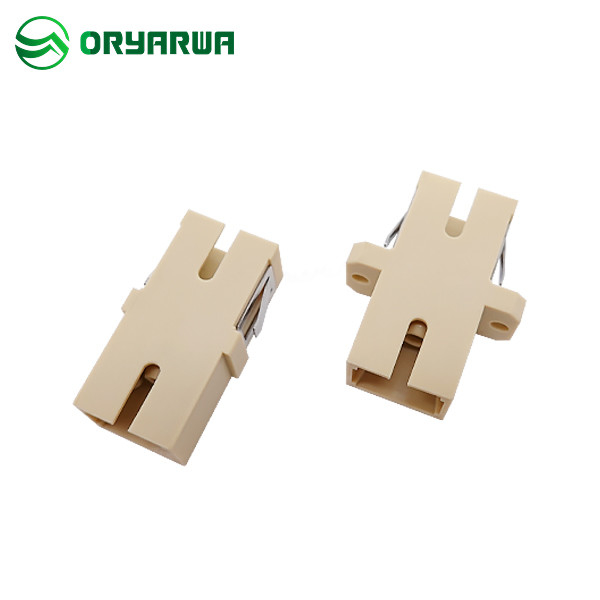

Flange Simplex SC Fiber Optic Adapter Beige Color For Telecommunications 0

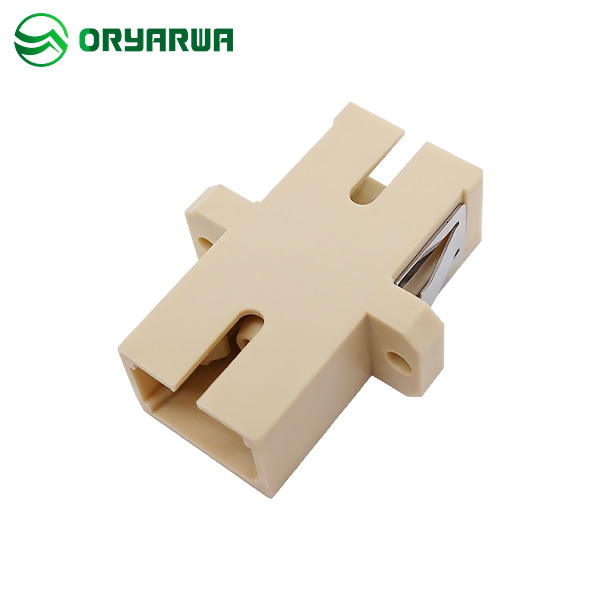

Flange Simplex SC Fiber Optic Adapter Beige Color For Telecommunications 1



Flange Simplex SC Fiber Optic Adapter Beige Color For Telecommunications 2



Reports:

HA0121030732CHEM_PBT_ROHS(HATEK).pdf

HA0121030746CHEM_PBT_REACH(HATEK).pdf



Drawing:

OYH-JS-ZP-215 SC Adaptor Simplex Flangless One pie...

OYH-JS-ZP-216 SC Adaptor Simplex with Flange One p...
