OEM Inner Shutter Simplex SC Fiber Optic Adapter IEC Standard
Contact Person : Jenny
Phone Number : +86 135 3017 1335
whatsapp : +8613530171335
| Minimum Order Quantity : | 1000 | Price : | Negotiate |
|---|---|---|---|
| Packaging Details : | 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN | Delivery Time : | 3-14 Days |
| Payment Terms : | T/T | Supply Ability : | 5000000 PCS/Month |
| Place of Origin: | Zhejiang | Brand Name: | Oryarwa |
|---|---|---|---|
| Certification: | RoHS/REACH/UL 94-V0 | Model Number: | Green SC Simplex Flangeless Welded Type Fiber Optic Adapter |
|
Detail Information |
|||

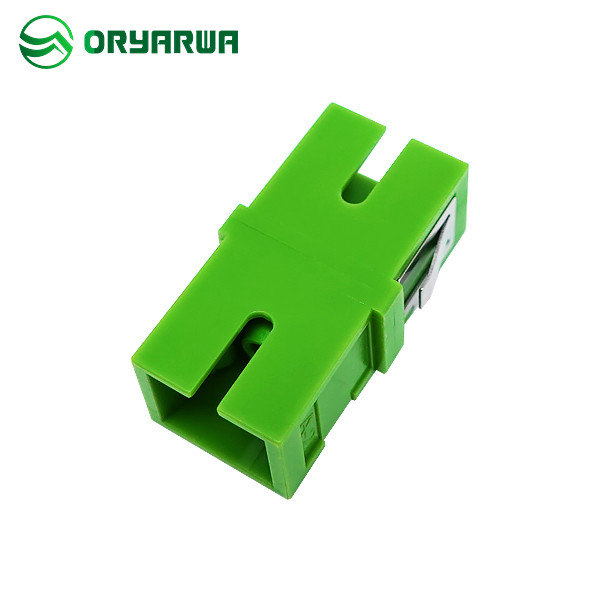

| Product Name: | Green SC Simplex Flangeless Welded Type Fiber Optic Adapter | Color: | Green |
|---|---|---|---|
| Mode Type: | Singlemode, Multimode | Insertion Loss: | ≤0.2dB |
| Durability: | ≤0.2dB( 500 Times) | Sleeve Pull Force: | 2-5.9N |
| Operating Temp.: | -40℃～+80℃ | Storage Temp.: | -40℃～+80℃ |
| Meeting Standards: | IEC61754-4-2013 / IEC613000 | Certification: | ISO9001 |
| High Light: | UL SC Fiber Optic Adapter,ODM SC Fiber Optic Adapter,ODM SC To SC Coupler |
||
Product Description
ODM SC To SC Coupler Simplex SC Fiber Optic Adapter Singlemode Multimode
Singlemode Multimode SC to SC Simplex Coupler Fiber Optic Adapter
|
Product Name |
Blue SC Simplex Flangeless Welded Type Fiber Optic Adapter | Color | Blue |
|---|---|---|---|
| Mode Type | Singlemode, Multimode | Insertion Loss | ≤0.2dB |
| Sleeve Pull Force | 2-5.9N | Durability | ≤0.2dB( 500 Times) |
| Operating Temp. | -40℃～+80℃ | Standards |
IEC61754-4-2013 / IEC613000 |
Environmental and Mechanism:
| Properties | Test Condition | Conformance | Test Result |
|---|---|---|---|
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 500 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
| Temperature Cycling | 40ºC to +85ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%RH, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Features:
> High return loss,Low insertion loss.
> High stability & reliability.
> Push-and-pull structure ,convenient for operation.
> Used to mate two connectors together.
> Compliant with CE and RoHS standards.
> Available with single-core & multi core patch cords and pigtail.
> Technical Specification
Fiber Optic Adapter Application:
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTX
> Testing Equipment
> Fiber LAN
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
Reports:
LC Adapter_PC Material_REACH(HATEK).pdf
LC Adapter -PC Material-RoHS(HATEK).pdf
Drawing:
