Dust Cap ST Fibre Optic Adapter Multimode Singlemode For FTTH Outlets

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94 -V0 Model Number: Yellow ST Simplex Flane Metal Type Fiber Optic Adapter

Detail Information

Product Name: Yellow ST Simplex Flane Metal Type Fiber Optic Adapter Color: Metal
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 2-5.9N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: YD/T 987-1998 / IEC613000 Certification: ISO9001
High Light:

FTTH ST Fiber Optic Adapter

,

ISO9001 ST Fiber Optic Adapter

,

ST ftth adapter

Product Description

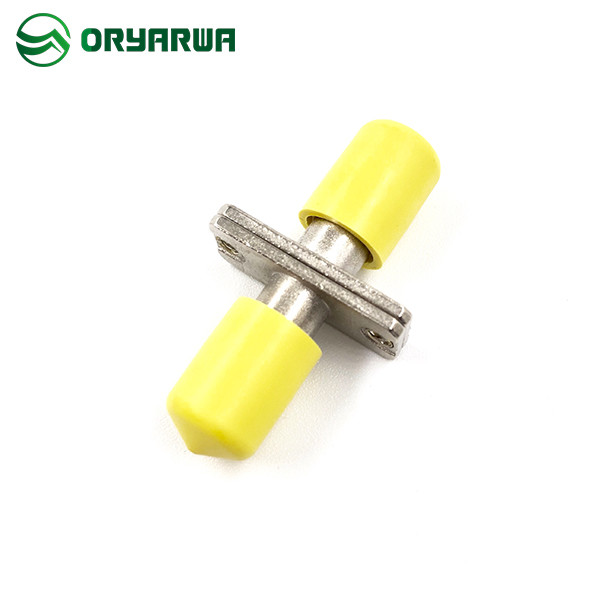

Dust Cap ST Fibre Optic Adapter Multimode Singlemode For FTTH Outlets



Metal Body Yellow Dust Cap ST Fibre Optic Adaptor for Fiber Optical Testing Equipment



High Light:  Adopt Ceramic Sleeve,  metal housing create good performerce of sleeve pull force and easy to install.



Detailed Product Description:

Product Name

Yellow ST Simplex Flane Metal Type Fiber Optic Adapter

Color

Metal

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

YD/T 987-1998 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Low insertion loss and back reflection loss
> Ferrule end surface pre-domed
> Precision anti-rotation key and corrosion resistant body
> UL-rated plastic housing
> Telcordia style boots
> Free-floating ceramic ferrule
> Zirconia sleeves or Phosphor bronze sleeves
> D-shaped easily installs into panel mount
> RoHS compliant



Fiber Optic Adapter Application:

> Patch panels
> Distribution frames
> Maintenance or emergency restoration of fiber networks
> FTTH Outlets
> Connection at the desk for LAN environments.



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

Dust Cap ST Fibre Optic Adapter Multimode Singlemode For FTTH Outlets 0Dust Cap ST Fibre Optic Adapter Multimode Singlemode For FTTH Outlets 1



Dust Cap ST Fibre Optic Adapter Multimode Singlemode For FTTH Outlets 2



Drawing:

OYH-JS-ZP-255 SC Metal SX SC TYPE.pdf



Reports:

HA0121030753CHEM_TPE_REACH(HATEK).pdf

HA0121030739CHEM_TPE_ROHS(HATEK).pdf
