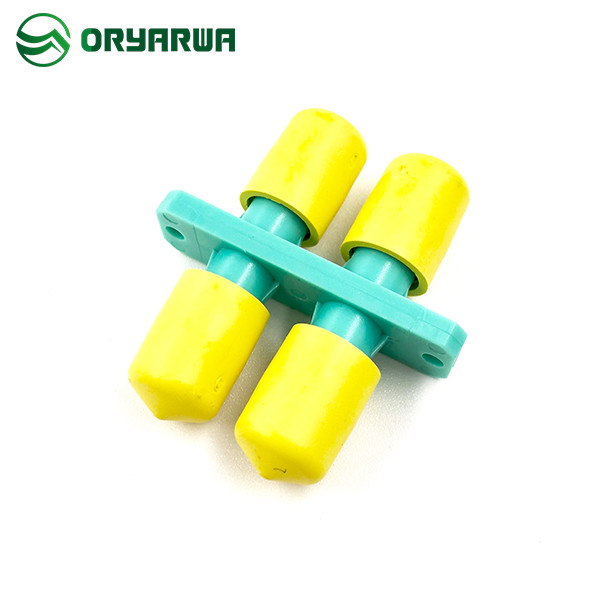

OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler

OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler

  • High Light

    Flange Duplex Adapter

    ,

    Flange ST Fiber Coupler

    ,

    OEM ST Fiber Coupler

  • Product Name
    Aqua ST Duplex Plastic Fiber Optic Adapter
  • Color
    Aqua
  • Mode Type
    Singlemode, Multimode
  • Insertion Loss
    ≤0.2dB
  • Durability
    ≤0.2dB( 500 Times)
  • Sleeve Pull Force
    2-5.9N
  • Operating Temp.
    -40℃~+80℃
  • Storage Temp.
    -40℃~+80℃
  • Meeting Standards
    YD/T 987-1998 / IEC613000
  • Certification
    ISO9001
  • Place of Origin
    Zhejiang
  • Brand Name
    Oryarwa
  • Certification
    RoHS/REACH/UL 94 -V0
  • Model Number
    Aqua ST Duplex Plastic Fiber Optic Adapter
  • Minimum Order Quantity
    1000
  • Price
    Negotiate
  • Packaging Details
    25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN
  • Delivery Time
    3-14 Days
  • Payment Terms
    T/T
  • Supply Ability
    5000000 PCS/Month

OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler

OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler



SC Type Flange Plastic Body Duplex ST Fiber Optic Coupler



Detailed Product Description:

Product Name

Aqua ST Duplex Plastic Fiber Optic Adapter

Color

Aqua

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

YD/T 987-1998 / IEC613000



Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Low insertion loss and back reflection loss
> Ferrule end surface pre-domed
> Precision anti-rotation key and corrosion resistant body
> UL-rated plastic housing

> Zirconia Sleeve ,Compact design
> Low insertional loss, High return loss
> Comply with IEC, Telcordia GR 326 and JIS standard



Fiber Optic Adapter Application:

> Optical fiber communication system
> Telecommunication Network
> Local Area Networks (LAN)
> Data processing networks
> Engineering Rescue
> Test Equipment
> Fiber CATV
> FTTH



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler 0OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler 1OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler 2



OEM SC Type Flange Duplex Adapter Single Mode ST Fiber Coupler 3



Drawing:

OYH-JS-ZP-006 ST PLASTIC DX.pdf



Reports:

HA0121030753CHEM_TPE_REACH(HATEK).pdf

HA0121030739CHEM_TPE_ROHS(HATEK).pdf

HA0121030733CHEM_PC_ROHS(HATEK).pdf

HA0121030747CHEM_PC_REACH(HATEK).pdf
