2.0mm 3.0mm Fiber Optic Cable LC Uniboot Connector Multimode ISO9001
Contact Person : Jenny
Phone Number : +86 135 3017 1335
whatsapp : +8613530171335
| Minimum Order Quantity : | 1000 | Price : | Negotiate |
|---|---|---|---|
| Packaging Details : | 200sets/Nylon bag ; Carton: 47*24*34CM | Delivery Time : | 3-14 Days |
| Payment Terms : | T/T | Supply Ability : | 6000000 PCS/Month |
| Place of Origin: | Zhejiang | Brand Name: | Oryarwa |
|---|---|---|---|
| Certification: | RoHS/REACH/UL-V0 | Model Number: | LC Fiber Optic Connector 2.0MM |
|
Detail Information |
|||
| Product Name: | LC Fiber Optic Connector 2.0MM | 85/85 Test: | 2000H |
|---|---|---|---|
| Insertion Loss: | ≤0.2dB | Durability: | ≤0.2dB( 500 Times) |
| Cable OD: | 2.0MM | Mode Type: | Singlemode, Multimode |
| Boot Type: | 2.0MM Short Boot 12MM | Boot Color: | White |
| Housing Type: | General | Housing Color: | Green/Blue/Beige/Aqua/Fushcia |
| Operating Temp.: | -40℃～+80℃ | Storage Temp.: | -40℃～+80℃ |
| Meet Standars: | IEC61754-20 / YD/T 1272.1 | Certification: | ISO9001 |
| High Light: | APC LC Fiber Optic Connector,ODM LC Fiber Optic Connector,12mm lc apc connector |
||
Product Description

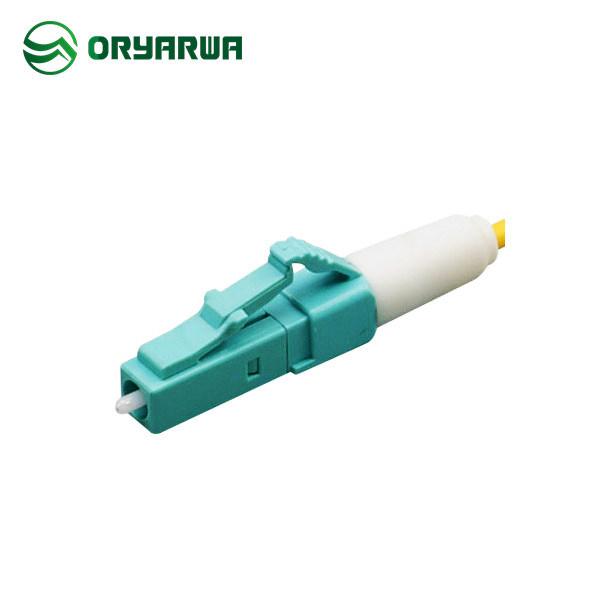

Simplex Duplex APC LC Fiber Optic Connector 2.0mm Short Boot 12mm
LC Fiber Optic Connector LC APC 2.0mm Short Boot 12MM Simplex Duplex PPSU Material
Detailed Product Description:
|
Product Name |
LC Fiber Optic Connector 2.0MM | Color |
Green/Blue/Beige/Aqua |
|---|---|---|---|
|
Mode Type |
Singlemode, Multimode |
Insertion Loss |
≤0.2dB |
|
Sleeve Pull Force |
1-2.5N |
Durability |
≤0.2dB( 500 Times) |
|
Operating Temp. |
-40℃～+80℃ |
Standards |
IEC61754-20 / YD/T 1272.1 |
Environmental and Mechanism:
|
Properties |
Test condition |
Conformance |
Test result |
|---|---|---|---|
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
500 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-12 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-6 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +85ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%RH, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Features:
> Low insertion loss, high return loss
> Precision anti-rotation key and corrosion resistant body
> Strict testing standards and methods for quality
> Simple and easy method to quickly interconnect
> Ceramic or Bronze Sleeve
> Meet IEC and ROHS standards
Application:
> Telecom network
> Ethernet network
> Optical communication equipment
> Patch panels, ODF and other optical connections.
> Optical networks demarcation and >monitoring point
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
Drawing:
OYH-JS-ZP-115 LC 2.0mm 12boot.pdf
Reports:
HA0121030737CHEM_PPSU_ROHS(HATEK).pdf
HA0121030751CHEM_PPSU_REACH(HATEK).pdf
