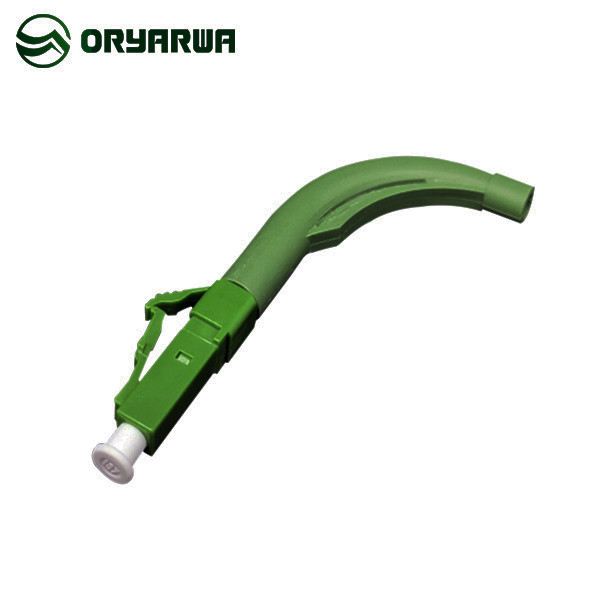

Multimode LC 90 Degree Fiber Optic Connector For 2.0mm 3.0mm Cable

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 200sets/Nylon bag ; Carton: 47*24*34CM Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-V0 Model Number: LC Fiber Optic Connector 2.0MM 90 Degree Boot

Detail Information

Product Name: LC Fiber Optic Connector 2.0MM 90 Degree Boot 85/85 Test: 2000H
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Mode Type: Singlemode, Multimode Cable OD: 2.0MM
Boot Type: 2.0MM Flex Angle 90 Degree Boot Boot Color: Green/White/Blue/Black/Red
Housing Type: General Housing Color: Green/Blue/Beige/Aqua/Fushcia
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-20 / YD/T 1272.1 Certification: ISO9001
High Light:

lc 90 degree fiber optic connector

,

ODM 90 Degree Fiber Optic Connector

,

2.0mm 3.0mm lc optical connector

Product Description

Multimode LC 90 Degree Fiber Optic Connector For 2.0mm 3.0mm Cable



LC Optical Fiber Connector W/90 Degree Boot For 2.0MM / 3.0MM Cable Assemblies LC Angle Boot



Detailed Product Description:

Product Name

LC Fiber Optic Connector 2.0MM 90 Degree Boot Color

Green/Blue/Beige/Aqua

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20 / YD/T 1272.1



Environmental and Mechanism:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Field installable
> With high-quality porcelain bushing
> With high dimensional accuracy;
> Insert loss less than 0.2dB
> Reliable and superior optical performance



Application:

> Local Area Network
> CATV System
> Telecommunication Networks
> Equipment Test



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.







Drawing:

OYH-JS-ZP-072 LC 2.0mm 90degree.pdf



Reports:

HA0121030737CHEM_PPSU_ROHS(HATEK).pdf

HA0121030751CHEM_PPSU_REACH(HATEK).pdf
