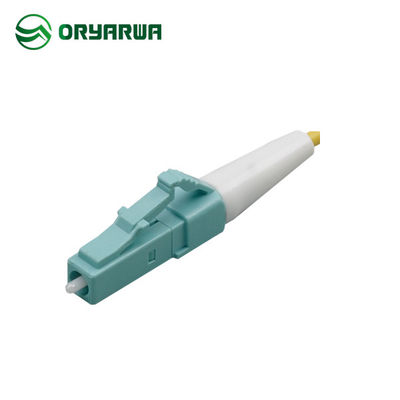

15mm Long Boot LC UPC Fiber Connector Multimode For FTTA FTTB FTTC

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 200sets/Nylon bag ; Carton: 47*24*34CM Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-V0 Model Number: LC Fiber Optic Connector 2.0MM

Detail Information

Product Name: LC Fiber Optic Connector 2.0MM 85/85 Test: 2000H
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Cable OD: 2.0MM Mode Type: Singlemode, Multimode
Boot Type: 2.0MM Long Boot 15MM Boot Color: White/Blue/Green/Beige
Housing Type: General Housing Color: Green/Blue/Beige/Aqua/Fushcia
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meet Standars: IEC61754-20 / YD/T 1272.1 Certification: ISO9001
High Light:

FTTA LC UPC Fiber Connector

,

FTTC LC UPC Fiber Connector

,

FTTA lc cable connector

Product Description

15mm Long Boot LC UPC Fiber Connector Multimode For FTTA FTTB FTTC



LC Fiber Optic Connector Cable Telecome Class For 2.0mm Cable with 15MM long Boot



Detailed Product Description:

Product Name

LC Fiber Optic Connector 2.0MM Color

Green/Blue/Beige/White

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20 / YD/T 1272.1



Environmental and Mechanism:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> Excellent Temperature stability
> Low insertion loss, high return loss
> Good repeatability and exchange ability
> Excellent mechanical endurance
> Customer defined specifications
> Compliant with IEC, ROHS, REACH



Application:

> FTTx ( FTTA, FTTB, FTTC, FTTO, >FTTH,..)
> CATV
> Telecommunication networks
> Test equipment
> Metro
> Local Area Networks  (LANs )
> Data processing networks



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.





Drawing:

OYH-JS-ZP-067 LC 2.0mm 15boot.pdf



Reports:

HA0121030737CHEM_PPSU_ROHS(HATEK).pdf

HA0121030751CHEM_PPSU_REACH(HATEK).pdf
