SM MM OM3 Fiber Optic LC Uniboot Connector 2.0mm for FTTH CATV

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 200sets/Nylon bag ; Carton: 47*24*34CM Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-94 V0 Model Number: LC Fiber Optic Uniboot 2.0MM Connector

Detail Information

Product Name: LC Fiber Optic Uniboot 2.0MM Connector 85/85 Test: 2000H
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Cable OD: 2.0MM Housing Material: PPSU
Boot Type: 2.0MM Uniboot Boot Color: White/Aqua
Housing Color: Green/Blue/Beige/Aqua/Fushcia Housing Type: General
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meet Standards: IEC61754-20 / YD/T 1272.1 / UL94-V0 Certification: ISO9001
High Light:

SM LC Uniboot Connector

,

MM LC Uniboot Connector

,

FTTH lc cable connector

Product Description

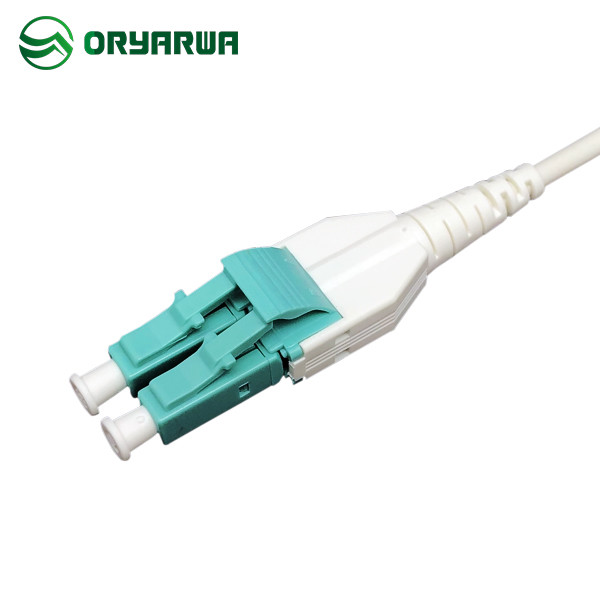

SM MM OM3 Fiber Optic LC Uniboot Connector 2.0mm For FTTH CATV



LC Uniboot MM OM3 Fiber Optic Connector With Aqua 2.0mm Meet UL94-V0 Flammability Requirements



Detailed Product Description:

Product Name

LC Fiber Optic Uniboot 2.0MM Connector Color

Green/Blue/Beige/Aqua

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20 / YD/T 1272.1 / UL94-V0



Environmental and Mechanism:

Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:
> Uniboot

> Flammability UL94 V-0 standard
> Ceramic sleeve, PPSU housing

> Multimode or Single Mode, OM3,OM4 available
> Insertion Loss≤ 0.2dB
> Operating temp.: -40° C~+85° C
> Durability > 500 times



Application:

> Telecommunication Network
> Testing Equipment
> Local Area Network(LAN)
> CATV
> Engineering Recovery
> FTTH
> Connect Different Types of Ceramic Ferrule Bores



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.
