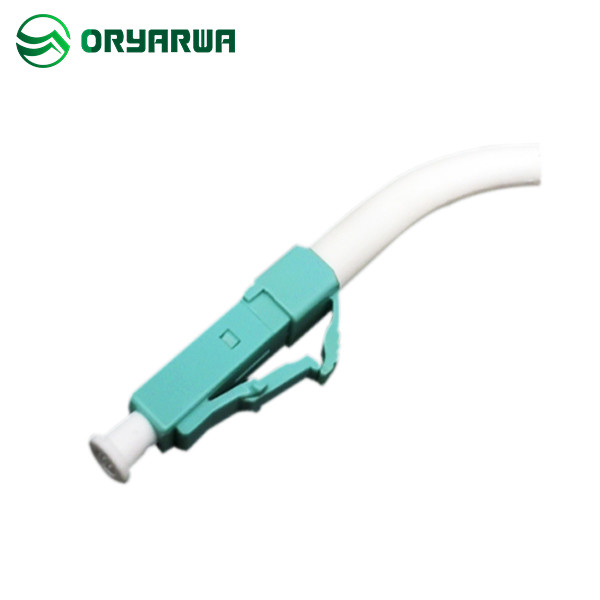

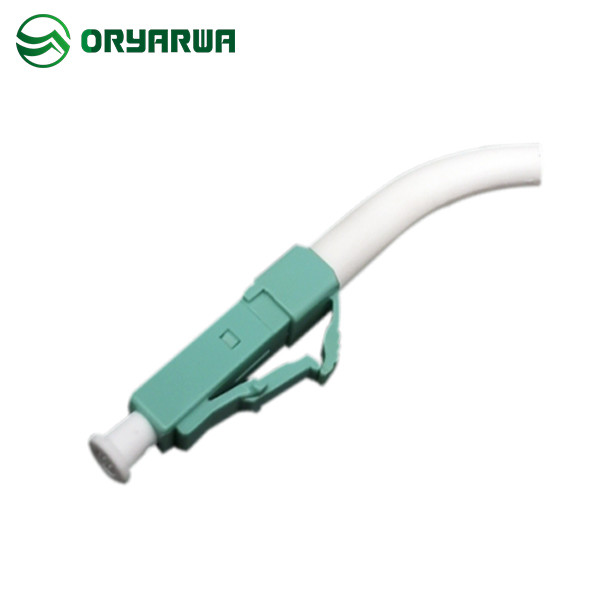

45 Degree Boot LC Fiber Optic Connector 2.0mm Flex Angle For Telecom

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 200sets/Nylon bag ; Carton: 47*24*34CM Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: LC Fiber Optic Connector 2.0MM 45 Degree Boot

Detail Information

Certification: ISO9001 Product Name: LC Fiber Optic Connector 2.0MM 45 Degree Boot
85/85 Test: 2000H Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Mode Type: Singlemode, Multimode
Cable OD: 2.0MM Boot Type: 2.0MM Flex Angle 45 Degree Boot
Boot Color: Green/White/Aqua/Black/Red/Yellow Housing Type: General
Housing Color: Green/Blue/Beige/Aqua/Fushcia Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-20 / YD/T 1272.1
High Light:

Flex LC Fiber Optic Connector

,

45 Degree LC Fiber Optic Connector

,

Flex lc type connector

Product Description

45 Degree Boot LC Fiber Optic Connector 2.0mm Flex Angle For Telecom



Optical Fiber Connector LC Flex Angle Boot W/45 Degree Boot For 2.0MM / 3.0MM Cable Assemblies



Detailed Product Description:

Product Name

LC Fiber Optic Connector 2.0MM 45 Degree Boot Color

Green/Blue/Beige/Aqua

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20 / YD/T 1272.1



Environmental and Mechanism:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Features:

> With high-quality porcelain bushing

> With high precise dimension
> Low insertion (<0.2dB)
> Changebility is more than one thousand,repeatibility is less than 0.2dB
> Meets the Telcordia and IEC 61754 standard, all materials compliant with RoHS / REACH



Application:

> Telecommunications
> Acccess network
> Optic fiber CATV LAN and Access > Network
> Terminal of the devices multimedia
> Testing and hospital deveces
> Other industry and military applications



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Drawing:

OYH-JS-ZP-073 LC 2.0mm 45degree.pdf



Reports:

HA0121030737CHEM_PPSU_ROHS(HATEK).pdf

HA0121030751CHEM_PPSU_REACH(HATEK).pdf
