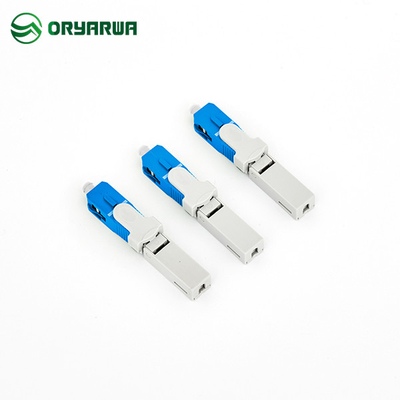

FTTH H03 Fiber Optic Fast Connectors SC UPC With Embedded

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 1000 Pcs/Carton G.W. : 4.9kg Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: H03 SC UPC

Detail Information

Certification: ISO9001 Product Name: H03 SC UPC 50MM Fast Connector
Type: With Embedded Fiber Diameter: 125μm-900μm
Length: 50mm Insertion Loss: IL ≤ 0.35 DB
Return Loss: ≥40 DB Tensile Strength: >20N
Temp. Cycle: IL Change ≤0.35 DB Repeatability: ≤ 0.35 DB
High Light:

H03 Fiber Optic Fast Connectors

,

SC UPC Connector For FTTH

,

FTTH Fiber Optic Fast Connectors

Product Description

H03 Fiber Optic Fast Connectors SC UPC Connector For FTTH



Detailed Product Description:

Product Name

H03 Fiber Optic Fast Connector

Color

Green

Mode Type

With Embedded

Insertion Loss

IL ≤ 0.35 dB

Return loss

≥40 dB

Tensile Strength

>20N

Operating Temp.

-40℃~+85℃

Standards

IEC61754-4



Environmental parameters:

Properties

Test condition

Test result

Vibration

IL change ≤ 0.35 dB

≤0.35 dB

Flooding

IL change ≤ 0.35 dB

≤0.35 dB

Repeatability

IL change ≤ 0.35 dB

≤0.35 dB

Operating Temperature

-40ºC to +85ºC ≤0.35 dB

Temperature Cycle

-40ºC to +85ºC ≤0.35 dB



Features:

> Good high temperature performance and good sealing
> High return loss and low insertion loss
> Easy installation, quick and fast in the assembly field
> No special tools needed when installed


Application:

> FTTH
> Fiber Distribution Frams(ODF)
> Optical Fiber Distribution box (ODB)

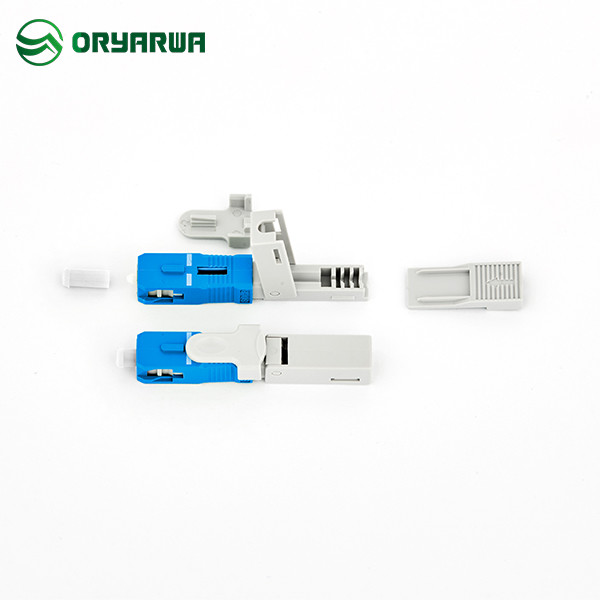

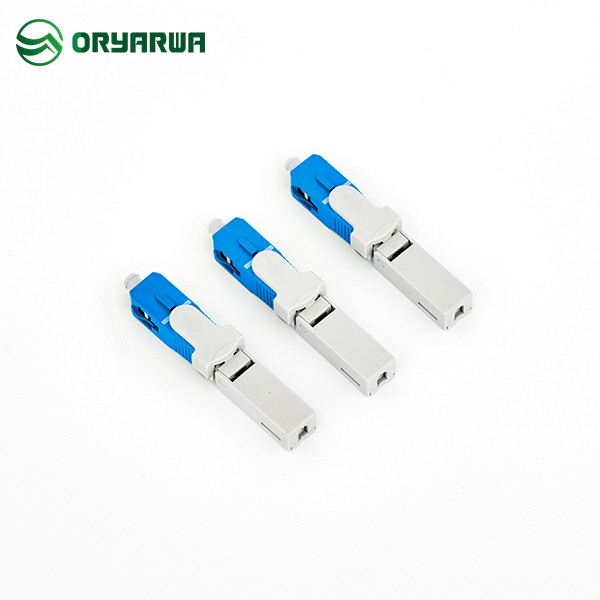

FTTH H03 Fiber Optic Fast Connectors SC UPC With Embedded 0FTTH H03 Fiber Optic Fast Connectors SC UPC With Embedded 1FTTH H03 Fiber Optic Fast Connectors SC UPC With Embedded 2



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.
