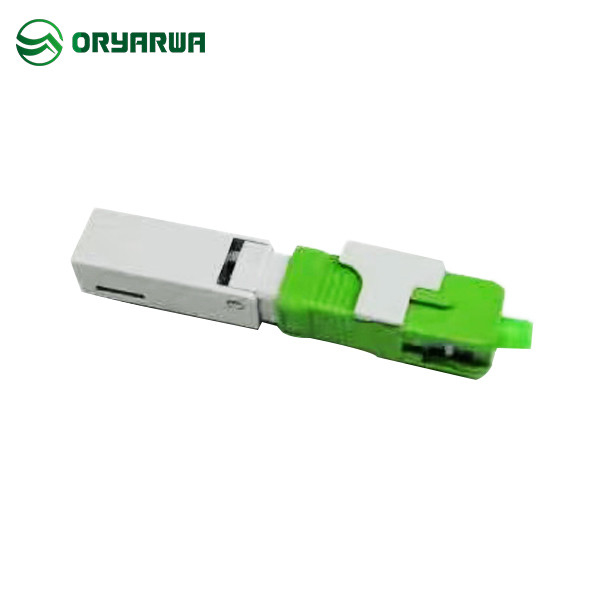

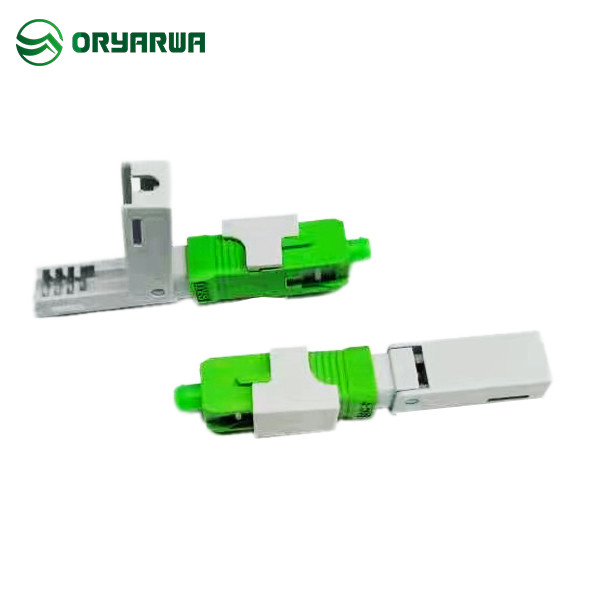

Fiber Optic Fast Connector SC APC Field Assembly SM L11

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 1000 Pcs/Carton G.W. : 6kg Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: L11 SC APC

Detail Information

Certification: ISO9001 Product Name: L11 SC APC 50MM Fast Connector
Type: With Embedded Fiber Diameter: 125μm-900μm
Length: 50mm Insertion Loss: IL ≤ 0.35 DB
Return Loss: ≥40dB Tensile Strength: >20N
Temp. Cycle: IL Change ≤0.35 DB Repeatability: ≤ 0.35 DB
High Light:

Fiber Optic Fast Connector SC APC


L11 Fast Connector SC APC


IEC 61754-4 SC APC Connector

Product Description

Fiber Optic Fast Connector SC APC Field Assembly SM L11


Detailed Product Description:

Product Name

L11 SC APC Fast Connector



Mode Type

With Embedded

Insertion Loss

IL ≤ 0.35 dB

Return loss

≥40 dB

Tensile Strength


Operating Temp.





Environmental parameters:


Test condition

Test result


IL change ≤ 0.35 dB

≤0.35 dB


IL change ≤ 0.35 dB

≤0.35 dB


IL change ≤ 0.35 dB

≤0.35 dB

Operating Temperature

-40ºC to +85ºC ≤0.35 dB

Temperature Cycle

-40ºC to +85ºC ≤0.35 dB



> No special tools needed when installed
> Can be made on-site without splicing connectors
> Only 30 seconds needed to learn the process of installation and making
> Can be intalled and maked repeatedly thus avoiding loss


> Applied to open FTTH fiber terminal
> Used in closure boxes, cabinets, teminal boxes, etc.
> Recovery and maintenance in fiber breakage and other accidents
> LAN, WAN, data and video transmission
> Construction and maintenance of fiber access for end users
> Fiber entry for mobile base stations


Fiber Optic Fast Connector SC APC Field Assembly SM L11 0



Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.


Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.


Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.


Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.

Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.
