Fiber Optic Fast Connector SC APC Field Assembly SM L11
Contact Person : Jenny
Phone Number : +86 135 3017 1335
whatsapp : +8613530171335
| Minimum Order Quantity : | 1000 | Price : | Negotiate |
|---|---|---|---|
| Packaging Details : | 1000 Pcs/Carton G.W. : 4.9kg | Delivery Time : | 3-14 Days |
| Payment Terms : | T/T | Supply Ability : | 6000000 PCS/Month |
| Place of Origin: | Zhejiang | Brand Name: | Oryarwa |
|---|---|---|---|
| Model Number: | H07 SC APC |
|
Detail Information |
|||
| Certification: | ISO9001 | Product Name: | H07 SC APC 50MM Fast Connector |
|---|---|---|---|
| Type: | With Embedded | Fiber Diameter: | 125μm-900μm |
| Length: | 50mm | Insertion Loss: | IL ≤ 0.35 DB |
| Return Loss: | ≥40 DB | Tensile Strength: | >20N |
| Temp. Cycle: | IL Change ≤0.35 DB | Repeatability: | ≤ 0.35 DB |
| High Light: | SC APC Connector Quick Assembly,H07 Fiber Optic Fast Connector,SC APC Connector With Embedded |
||
Product Description

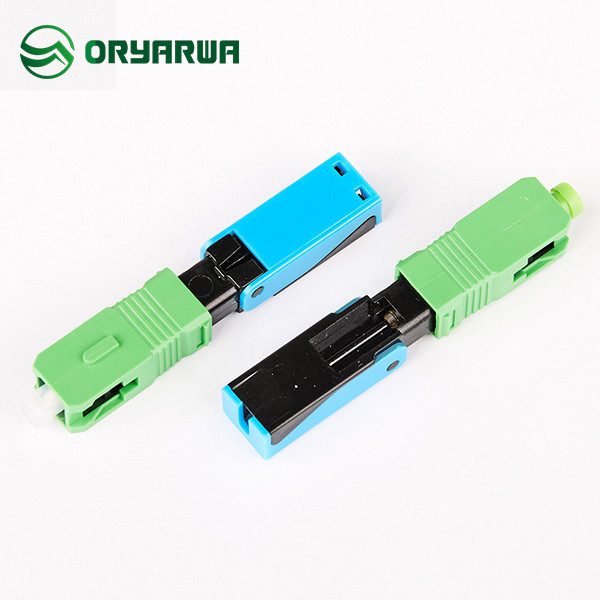

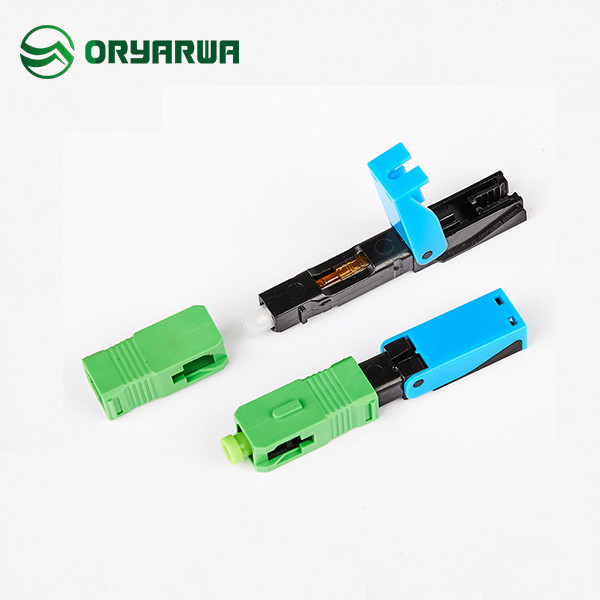

H07 Fiber Optic Fast Connector SC APC Quick Assembly With Embedded
Detailed Product Description:
|
Product Name |
H07 SC APC Fast Connector |
Color |
Green |
|---|---|---|---|
|
Mode Type |
With Embedded |
Insertion Loss |
IL ≤ 0.35 dB |
|
Return loss |
≥40 dB |
Tensile Strength |
>20N |
|
Operating Temp. |
-40℃～+85℃ |
Standards |
IEC61754-4 |
Environmental parameters:
|
Properties |
Test condition |
Test result |
|---|---|---|
|
Vibration |
IL change ≤ 0.35 dB |
≤0.35 dB |
|
Flooding |
IL change ≤ 0.35 dB |
≤0.35 dB |
|
Repeatability |
IL change ≤ 0.35 dB |
≤0.35 dB |
|
Operating Temperature |
-40ºC to +85ºC | ≤0.35 dB |
|
Temperature Cycle |
-40ºC to +85ºC | ≤0.35 dB |
Features:
> Without any gluing and polishing process
> Only 30 seconds needed to learn the process of installation
> Easy installation, quick and fast in the assembly field
Application:
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
