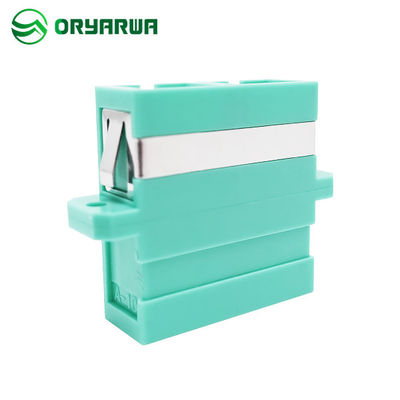

Flangeless Welded Duplex SC Fiber Optic Adapter High Return Loss 0.2dB

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: Aqua SC Duplex Welded Fiber Optic Adapter

Detail Information

Certification: ISO9001 Product Name: Aqua SC Duplex Welded Fiber Optic Adapter
Color: Green/Blue/Beige/Aqua/Violet Mode Type: Single Mode, Multimode
Insertion Loss: ≤0.2dB Durability: ≤0.2dB( 500 Times)
Sleeve Pull Force: 2-5.9N Operating Temp.: -40℃~+80℃
Storage Temp.: -40℃~+80℃ Meeting Standards: IEC61754-4-2013 / IEC613000
High Light:

Flangeless SC Fiber Optic Adapter

,

0.2dB SC Fiber Optic Adapter

,

Flangeless fiber sc adapter

Product Description

Flangeless Welded Duplex SC Fiber Optic Adapter High Return Loss 0.2dB



High Return Loss 0.2dB Flangeless Welded Type SC Duplex Fiber Optic Adaptor / Coupler



Detailed Product Description:

Product Name

Aqua SC Duplex Welded Fiber Optic Adapter Color Green/Blue/Beige/Aqua/Violet
Mode Type Singlemode, Multimode Insertion Loss ≤0.2dB
Sleeve Pull Force 2-5.9N Durability ≤0.2dB( 500 Times)
Operating Temp. -40℃~+80℃ Standards

IEC61754-4-2013 / IEC613000



Environmental and Mechanism:

Properties Test Condition Conformance Test Result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:

> Low insertion loss, high return loss
> Good compatibility
> High precision of mechanical dimensions
> High reliability & stability
> Ceramic or Bronze Sleeve
> PC, APC, UPC optional
> Simplex / Duplex



Fiber Optic Adapter Application:

> Telecom network
> Ethernet network
> Optical communication equipment
> Patch panels, ODF and other optical connections.
> Optical networks demarcation and >monitoring point



Flangeless Welded Duplex SC Fiber Optic Adapter High Return Loss 0.2dB 0Flangeless Welded Duplex SC Fiber Optic Adapter High Return Loss 0.2dB 1

Flangeless Welded Duplex SC Fiber Optic Adapter High Return Loss 0.2dB 2

Flangeless Welded Duplex SC Fiber Optic Adapter High Return Loss 0.2dB 3

FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-011 SC Adaptor Duplex with flange Welded...

OYH-JS-ZP-012 SC Adaptor Duplex Flangless Welded t...
