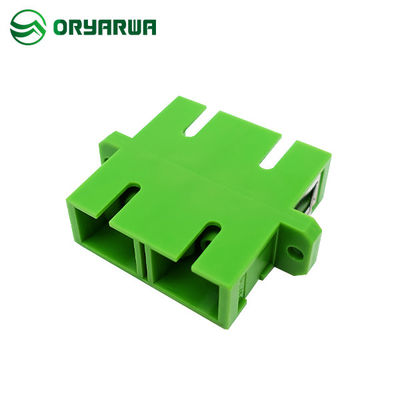

Flange Welding Formed SC APC Adapter CATV Duplex SC Fiber Coupler

Minimum Order Quantity : 1000 Price : Negotiate
Packaging Details : 25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 5000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL 94-V0 Model Number: Green SC Duplex Welded Fiber Optic Adapter

Detail Information

Product Name: Green SC Duplex Welded Fiber Optic Adapter Color: Green
Mode Type: Singlemode, Multimode Insertion Loss: ≤0.2dB
Durability: ≤0.2dB( 500 Times) Sleeve Pull Force: 2-5.9N
Operating Temp.: -40℃~+80℃ Storage Temp.: -40℃~+80℃
Meeting Standards: IEC61754-4-2013 / IEC613000 Certification: ISO9001
High Light:

Flange SC APC Adapter

,

CATV SC APC Adapter

,

Flange SC Fiber Coupler

Product Description

Flange Welding Formed SC APC Adapter CATV Duplex SC Fiber Coupler



Flange Welding Formed SC / APC Fiber Optic Coupler Fiber CATV



Detailed Product Description:

Product Name

Green SC Duplex Welded Fiber Optic Adapter Color Green
Mode Type Singlemode, Multimode Insertion Loss ≤0.2dB
Sleeve Pull Force 2-5.9N Durability ≤0.2dB( 500 Times)
Operating Temp. -40℃~+80℃ Standards

IEC61754-4-2013 / IEC613000



Environmental and Mechanism:

Properties Test Condition Conformance Test Result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 500 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-12 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-6 ≤0.2dB
Temperature Cycling 40ºC to +85ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%RH, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:

> Low insertion loss and back reflection loss

> Ferrule end surface pre-domed

> Precision anti-rotation key and corrosion resistant body

> UL-rated plastic housing

> Telcordia style boots

> Free-floating ceramic ferrule

> Zirconia sleeves or Phosphor bronze sleeves

> RoHS compliant



Fiber Optic Adapter Application:

> Patch panels

> Distribution frames

> Maintenance or emergency restoration of fiber networks

> FTTH Outlets

> Connection at the desk for LAN environments



FAQ:

Q1: How can I get the sample?


Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?


Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?


Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?


Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?



All our product meet IEC standard, pass REACH, RoHS test.

Flange Welding Formed SC APC Adapter CATV Duplex SC Fiber Coupler 0Flange Welding Formed SC APC Adapter CATV Duplex SC Fiber Coupler 1Flange Welding Formed SC APC Adapter CATV Duplex SC Fiber Coupler 2Flange Welding Formed SC APC Adapter CATV Duplex SC Fiber Coupler 3



Flange Welding Formed SC APC Adapter CATV Duplex SC Fiber Coupler 4



Reports:

LC Adapter_PC Material_REACH(HATEK).pdf

LC Adapter -PC Material-RoHS(HATEK).pdf



Drawing:

OYH-JS-ZP-011 SC Adaptor Duplex with flange Welded...

OYH-JS-ZP-012 SC Adaptor Duplex Flangless Welded t...
