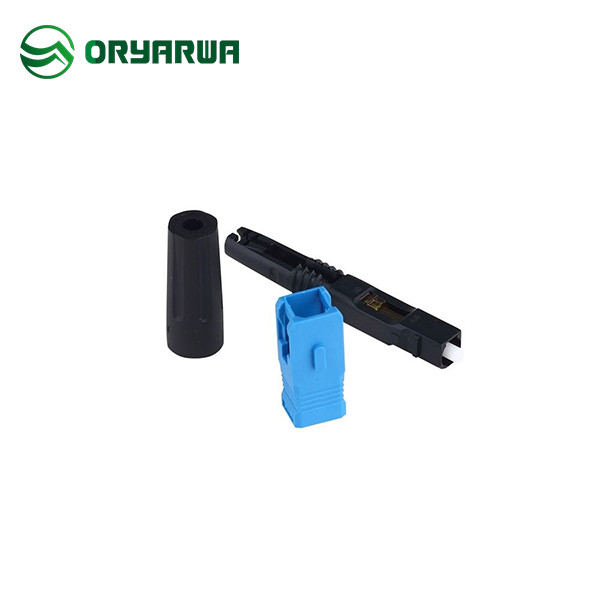

H04 50mm Fiber Optic Quick Connectors SC UPC Connector For FTTH

Minimum Order Quantity : 5000 Price : Negotiate
Packaging Details : 1000 Pcs/Carton G.W. : 4.9kg Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-94 V0 Model Number: H04 SC UPC

Detail Information

Product Name: H04 SC UPC 50MM Fast Connector Type: With Embedded
Fiber Diameter: 125μm-900μm Length: 50mm
Insertion Loss: IL ≤ 0.3 DB Return Loss: ≥40 DB
Tensile Strength: >20N Temp. Cycle: IL Change ≤0.3 DB
Repeatability: ≤ 0.3 DB Certification: ISO9001
High Light:

50mm Fiber Optic Quick Connectors

,

FTTH Fiber Optic Quick Connectors

,

50mm sc upc fast connector

Product Description

H04 50mm Fiber Optic Quick Connectors SC UPC Connector For FTTH



H04 SC UPC 50MM Fiber Optic Fast Connector for FTTH Field Installation



Detailed Product Description:

Product Name

H04 Fiber Optic Quick Connectors

Color

Green

Mode Type

With Embedded

Insertion Loss

IL ≤ 0.3 dB

Return loss

≥40 dB

Tensile Strength

>20N

Operating Temp.

-40℃~+85℃

Standards

IEC61754-4



Environmental parameters:

Properties

Test condition

Test result

Vibration

IL change ≤ 0.3 dB

≤0.3dB

Flooding

IL change ≤ 0.3 dB

≤0.3dB

Repeatability

IL change ≤ 0.3dB

≤0.3dB

Operating Temperature

-40ºC to +85ºC ≤0.2dB

Temperature Cycle

-40ºC to +85ºC ≤0.2dB



Features:

> Installation less than 1 minutes
> Reliable and superior optical performance
> Cable Tensile test complies with Telcordia GR-326-COR
> Excellent changeability and directivity
> 100% Optic test (Insertion Loss)


Application:

> FTTH
> Patch Panels
> Fiber Distribution Frams(ODF)
> Optical Fiber Distribution box (ODB)
> Maintetance Or Emergency Restoration Of Fiber Networks



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 5000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Package:

10 Pcs / Blister Box

10 Blister Boxes / Box     Inner box size: 15.4*15*6.7cm
1000 Pcs / Carton           Size: 18.5*37.7*33.8 cm
Gross Weight: 4.9kg



H04 50mm Fiber Optic Quick Connectors SC UPC Connector For FTTH 0

H04 50mm Fiber Optic Quick Connectors SC UPC Connector For FTTH 1H04 50mm Fiber Optic Quick Connectors SC UPC Connector For FTTH 2



Operation Manual:

H04_Fast Connector.pdf
