FTTH FTTA Fiber Optic Fast Connector SC UPC L13 60mm Length ISO9001

Minimum Order Quantity : 3000 Price : Negotiate
Packaging Details : 1000 Pcs/Carton G.W. : 6kg Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Certification: RoHS/REACH/UL-94 V0 Model Number: L13 SC UPC

Detail Information

Product Name: Fast Connector Sc Upc Type: With Embedded
Fiber Diameter: 125μm-900μm Length: 60mm
Insertion Loss: IL ≤ 0.3 DB Return Loss: ≥40 DB
Tensile Strength: >20N Temp. Cycle: IL Change ≤0.3 DB
Repeatability: ≤ 0.3 DB Certification: ISO9001
High Light:

FTTA Fiber Optic Fast Connector

,

ISO9001 Fiber Optic Fast Connector

,

FTTA ftth connector

Product Description

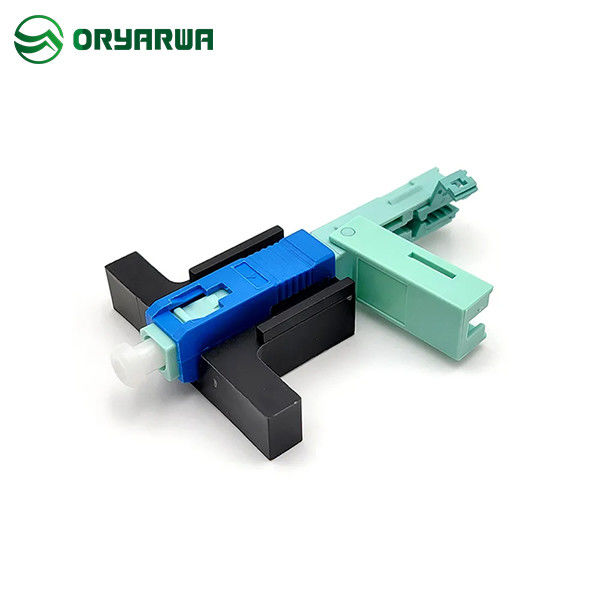

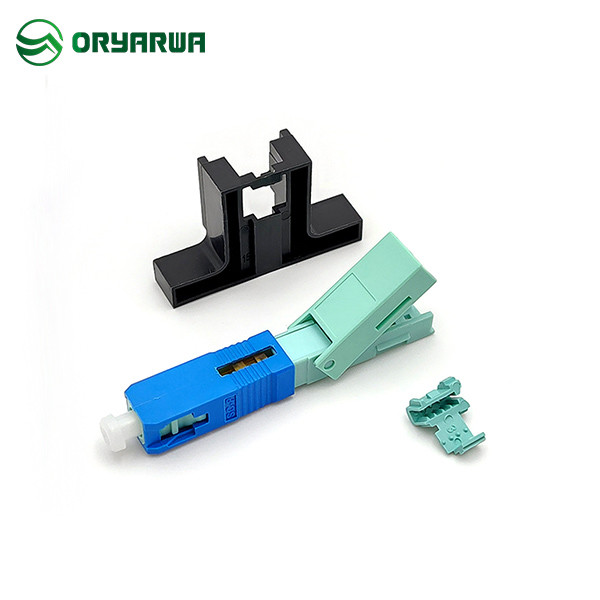

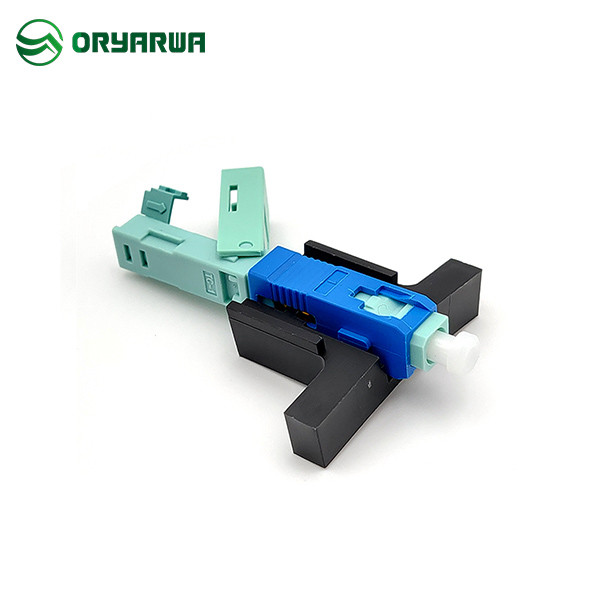

FTTH FTTA Fiber Optic Fast Connector SC UPC L13 60mm Length ISO9001



L13 60mm Length FTTH FTTA SC UPC Fiber Optic Fast Connector



Detailed Product Description:

Product Name

L13 SC UPC Fast Connector

Color

Blue

Mode Type

With Embedded

Insertion Loss

IL ≤ 0.3 dB

Return loss

≥40 dB

Tensile Strength

>20N

Operating Temp.

-40℃~+85℃

Standards

IEC61754-4



Environmental parameters:

Properties

Test condition

Test result

Vibration

IL change ≤ 0.3 dB

≤0.3dB

Flooding

IL change ≤ 0.3 dB

≤0.3dB

Repeatability

IL change ≤ 0.3dB

≤0.3dB

Operating Temperature

-40ºC to +85ºC ≤0.2dB

Temperature Cycle

-40ºC to +85ºC ≤0.2dB



Features:

> Factory-installed fiber stub
> No epoxy or polishing required
> Quick and easy fiber termination in the field
> Eliminates cable excess length and pigtail splicestorage
> Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable


Application:

> Used to open the FTTH fiber terminal end.
> In the box, cabinet, such as wiring into the box.
> Off the back of the accidents such as fiber, maintenance.
> LAN, wan, data and video transmission.
> The construction of the fiber end user access and maintenance.
> Optical fiber access of mobile base station.



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 3000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Package:

10 Pcs / Blister Box

10 Blister Boxes / Box     Inner box size: 15.4*15*6.7cm
1000 Pcs / Carton           Size: 18.5*37.7*33.8 cm
Gross Weight: 6kg
