H02 UPC SC Fiber Optic Fast Connector Embedded Quick For Filed Installation

Minimum Order Quantity : 5000 Price : Negotiate
Packaging Details : 1000 Pcs/Carton G.W. :5.2kg Delivery Time : 3-14 Days
Payment Terms : T/T Supply Ability : 6000000 PCS/Month
Place of Origin: Zhejiang Brand Name: Oryarwa
Model Number: H02 SC UPC

Detail Information

Certification: ISO9001 Product Name: H02 SC UPC Fiber Optic Fast Connector
Type: With Embedded Fiber Diameter: 125μm-900μm
Length: 55mm/60mm Insertion Loss: IL ≤ 0.35 DB
Return Loss: ≥40 DB Tensile Strength: >20N
Temp. Cycle: IL Change ≤0.3 DB Repeatability: ≤ 0.35 DB
High Light:

H02 Fast Connector Sc Upc

,

Fast Connector Sc Upc Embedded

,

Fiber Optic Fast Connector Embedded

Product Description

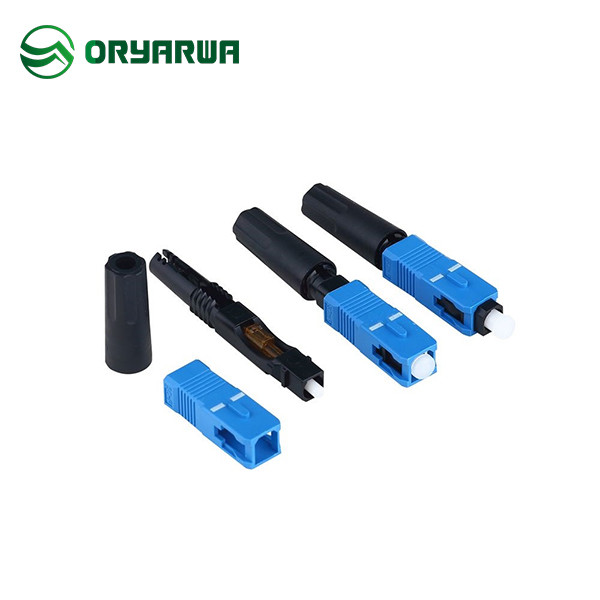

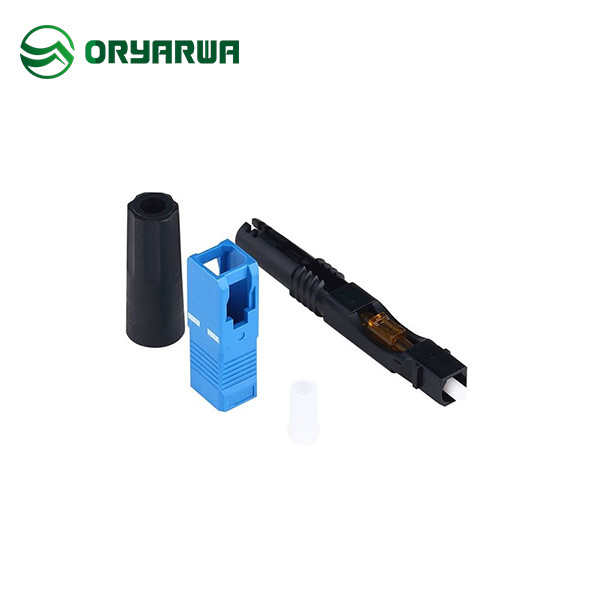

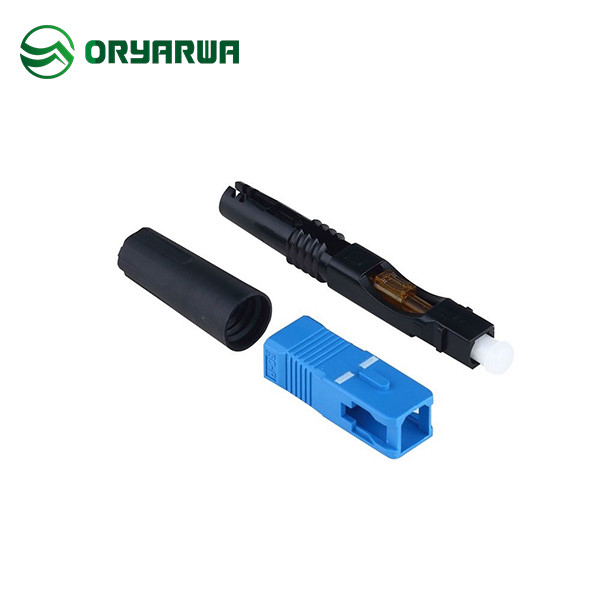

H02 UPC SC Fiber Optic Fast Connector Embedded Quick For Filed installation



Detailed Product Description:

Product Name

H02 SC UPC  Fast Connector

Color

Blue

Mode Type

With Embedded

Insertion Loss

IL ≤ 0.35 dB

Return loss

≥40 dB

Tensile Strength

>20N

Operating Temp.

-40℃~+85℃

Standards

IEC61754-4



Environmental parameters:

Properties

Test condition

Test result

Vibration

IL change ≤ 0.3 dB

≤0.3dB

Flooding

IL change ≤ 0.3 dB

≤0.3dB

Repeatability

IL change ≤ 0.3dB

≤0.3dB

Operating Temperature

-40ºC to +85ºC ≤0.2dB

Temperature Cycle

-40ºC to +85ºC ≤0.2dB



Features:

> No special assembling tool

> Quick and easy for assembling

> Reusable and repeat operation times are up to 300

> Integrated protection of the casing to prevent the connector form impact

> Can be installed in two minutes

> Power-save, as it does not need hot melting

> Without any gluing and polishing process



Application:

> FTTH/FTTX/FTTD

> Distribution frames

> Maintenance or emergency restoration of fiber networks

> Connection at the desk for LAN environments

> Terminal box sc upc fast connector



H02 UPC SC Fiber Optic Fast Connector Embedded Quick For Filed Installation 0



FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.



Q2: What is your MOQ?

Our MOQ is 5000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.



Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.



Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.



Operation Manual:

H02.pdf
